Description

SCANNA Digital Flat Panel X-Ray Unit for Unattended Bags and Suspicious Packages ScanWedge

in response to the increased need for security checks of suspicious or unattended items, we have now introduced an inexpensive robust flat panel X-Ray Image Machine. Developed specifically for portable X-Ray screening in tough law enforcement and EOD environments, ScanWedge has a unique flat panel design which allows it to be used in even the most confined spaces. ScanWedge can be used from different orientations and produces high quality X-Ray Images. Because safety, robustness and speed of use were some of the key concerns for EOD and police operators, ScanWedge is specifically designed with these features in mind. for the safety of operators and others in the vicinity, ScanWedge is used with the well tried and tested golden X-Ray generators, and does not rely on hazardous generators containing pressurized or toxic gases. for speed and safety, ScanWedge images are sent immediately to a laptop so that operators do not have to reapproach a potential suspect bomb to retrieve film or imaging plates. for increased robustness, ScanWedge contains no moving parts nor fragile components which makes it ideal for use in tough field environments.

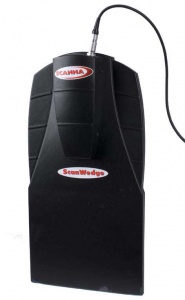

The ScanWedge 2520 incorporates the standard 8 x 10 inches screening area into a very compact and rugged flat panel while, with a flat imaging area of 25cm x 33 cm (10 x 13 inches).
The Larger ScanWedge 3325provides more than 50% coverage than other conventional portable x-ray systems in its class and can still be supplied in a single rugged transport case.ScanWedge is available as a complete flat panel portable x-ray system system or as a Flat Panel upgrade or accessory to ScanTrak or other portable x-ray units utilizing safe golden generators or polaroid film. ScanWedge is available boxed or as a portable backpack system. available in black, blue, military green, camouflage, and high visibility (shown)

Features

Compact Flat Panel imager (image area 25 x 20 cm) and less than 1 inch thick for getting into tight spaces

Larger panel offers 50% more coverage than conventional imaging boxes in the same class

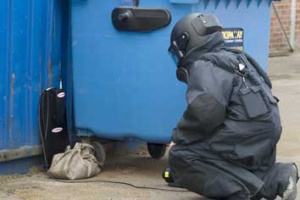

Search and examine suspicious packages or unattended bags on the spot

Only 3 key components required making scanwedge easy to set up and use in less than 5 minutes

Lightweight - less than 10 kgs in backpack (not including generator)

Fast imaging -X-Ray Image appears immediately on your screen. no scanner required.

Totally Portable - all components can operate on battery for up to 5 hours. no reliance on main power during operations

Flexible X-Raying -. set and fire your X-Ray generator from the laptop PC or Hand Held PDA

Fast Rescans - multiple X-Ray exposures can be taken in seconds using ScanView imaging software on the laptop or PDA without reapproach to retrieve the plate

Rugged reusable plates

Rugged transport case with inbuilt charging system supplied

Image analysis includes zoom, reverse black and white, pseudo-colour, pseudo 3D and measure, show gradients, rotation, distance, contrast enhancement and more

Works with Safe Portable X-Ray Sources Including Golden XR150, Golden XR200, Golden XRS-3.

Image print and email. save and in excess of 32,000 images on pc or cd

Image annotation features - make notes and store images in the incident management database.

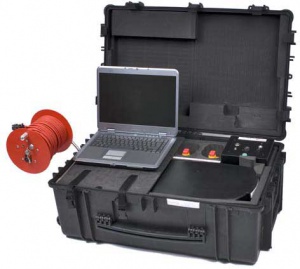

Standard ScanWedge System

Robust XR200 (golden) or Lightweight XR150 (golden) X-Ray Source

Notebook PC with Windows XP and ScanView X-Ray Imaging Software

ScanWedge 2520 Flat Panel X-Ray Image Machine (25 x 20 cm imaging area)

50 m cable drum

Spare Battery

Battery Charging System

Instruction Manuals

Options

Wire free system

Range of carry cases

Larger size imaging panel - scanwedge 3325 with 33 x 25 cm imaging area)

Golden XR200, golden XR150 or golden XRS-3 x-ray source

Multi-Lingual interface and operating guides

External camera

Backpack version

PDA viewer

Applications

Bomb Disposal

Suspect Package Investigation

Check Unattended Bags

Search for Narcotics and Hidden Contraband

Searching Behind Walls for Bugs/Weapons (for this application our CR35 system with ultra high resolution images may be more suitable)

Vehicle Panel/TYRE Inspection

NDT (non-destructive testing) - (for this application our CR35 system with ultra high resolution images may be more suitable)

PC Control Unit Minimum Specifications

15.4" WXGA Screen (1280x800) Glare / WSXGA+ (1680x1050) Glare

Intel P8400 Core 2 Duo 2.26Ghz 1066FSB 3MB Mobile

Vidia GeForce Go 9600M GT 512MB Video

2Gb DDR2 800 Memory

Serial ATA Hard Drive, up to 500GB

160Gb Hard Disk Drive

DVD+/- RW Drive

Card Reader

Optional 802.11n Wireless LAN

RJ-45, USB, VGA

10/100 LAN

Windows XP Professional (English)

X-Ray source:

Option 1:

XR 200 : ........ 150kV maximum energy penetration: 15 mm steel 5.5 kgs with battery

Option 2:

XRT50: ........ pulsed X-Ray with 40 beam angle 150kV maximum energy, 23 microsievert output dose per pulse at 1m. 0.028 microsievert behind beam penetration: 15mm steel. 36 AWG or 32 AWG behind 3mm steel 2 kgs with battery

Option 3:

XRS -3........ 300kV maximum energy penetration: 25 mm steel 5.5 kgs with battery
