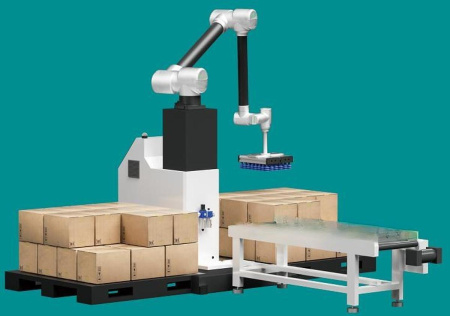

Sanpacsystems Hongda Palletizing Robot 210
Description
Sanpacsystems Hongda Palletizing Robot 210
FEEL FREE TO CONTACT US BY PHONE, EMAIL OR CHAT TO SCHEDULE A DISCOVERY CALL TO DISCUSS YOUR PROJECT.
The average US cost to hire an unskilled operator to place products on a pallet is approximately $40-45 thousand dollars (all in) a year plus benefits. With this financial consideration, the Sanpac Systems Robotic Palletizer will pay for itself in less than 12 months. Manual palletizing also creates the risk of potential worker injuries which cost companies thousands of dollars in downtime, medical expenses, workers compensation benefits, and rescheduling nightmares. Let workers do more productive work. The Hongda model 210 robotic palletizer software is user friendly, and an operator can learn to use it in 30-45 minutes.

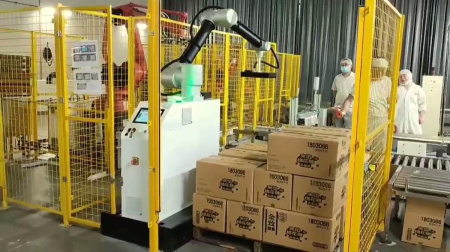

The Sanpac Systems Robotic Palletizer includes a Safety Fence. An optional LIDAR Anti-collision Sensor System will either slow the robot down or completely stop it if an operator gets to close.
1.Overview
- Our Palletizing Robot is designed to bring efficiency, flexibility, and ease of use to your end-of-line packaging operations. Engineered for seamless integration into various production environments, this robot excels at automating palletizing tasks with precision and reliability. These Palletizing Robots are UL and CE listed.
2.Key Features
- Portable Mobile Base Frame: The robot features a portable and mobile base frame assembly, greatly improving its convenience and flexibility for a wide range of applications.
- Lightweight & High Suction: Equipped with a lightweight, minimalistic end-of-arm gripper designed for peak performance. Its strong suction power prevents product drops, ensuring secure and reliable handling.
- Mechanical Pallet Positioning System: A simple and practical mechanical system that ensures accurate, consistent pallet placement, making setup and operation easier.
- Intuitive Operating System: Easily control the robot using a high-sensitivity 15-inch capacitive touchscreen. Powered by the advanced Palletizing Robot System, it offers user-friendly controls and powerful functionality.
- Electrical Control Cabinet: The robot features a self-developed, integrated electrical control cabinet that ensures low energy consumption and high-quality components.
3.Advantages
- Easy Programming: Features graphical programming for simple and efficient robot operation. Users can master the programming method in 30 minutes and complete simple tasks within one hour, requiring no prior programming language expertise.
- Safe and Stable: Equipped with industrial-grade force control sensors, the robot ensures high reliability and safety.
- Flexible Deployment: With an integrated, lightweight design and small footprint, the workstation allows quick and easy setup for new tasks, maximizing efficiency.
- Wide Applications: Widely used across industries such as food, pharmaceuticals, electronics (3C), daily chemicals, and printing.
4.Note
- The current gripper works only with standard cardboard cartons. If you need it to handle products made of other materials, we will need to customize the gripper and charge an additional fee.
5.Optional add-on features (additional cost).
- LiDAR Sensor: A non-contact sensor with an adjustable detection range. It triggers an alarm and reduces speed when approaching the yellow zone, and immediately stops the system upon entering the red zone.
- Light Curtain Sensor: Stable performance with strong anti-interference capability; high sensitivity and fast response; long service life.
- Slip Sheet Pick-and-place Function:
SPECIFICATIONS
- Year: 2025
- Condition: New
- Stock Number: 123
- Robot Payload: 66.1 lbs

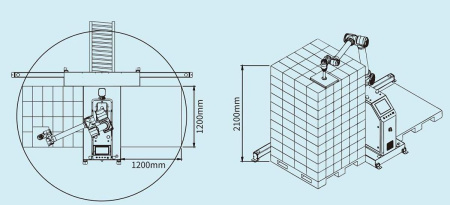

- Working Radius: 74.8in (1900 mm)
- Palletizing Height: Maximum 82.7in (2100 mm)
- Palletizing Speed: <9pcs/min
- Repeat Positioning Accuracy: ±0.0016in (±0.04 mm)
- Communication Method: TCP/IP
- IP Rating: IP54
- Temperature Range: 0–55?°C (32–131?°F)
- Power Supply: 200-230Vac,Single-Phase,50/60Hz,3KW
- Machine Weight: 771.6 lbs
- Footprint: 59.3×67.6in (1505×1716mm)
- Operating Footprint: 124.0×67.6in (3150×1716 mm)
- Minimum Factory Height: 10.5 ft (3.2 m)
- Safety Fence: Included
- Air Consumption: 12.4–15.9 CFM (350–450 L/min)
- Air Pressure: 72–102 psi (0.5–0.7 MPa)
- Warranty:Warranty is 1 year in Parts.
