Scanna | ScanX Scout Ruggedized X-Ray System With Flexible Film

ScanX Scout is a high performance x-ray imaging system using flat, flexible digital x-ray film plates to produce superb quality x-ray images.

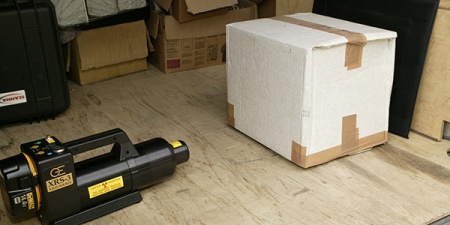

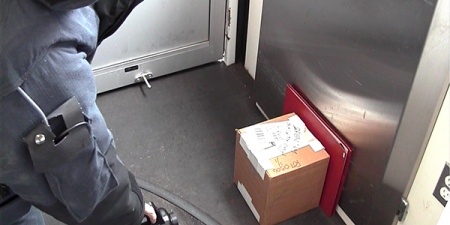

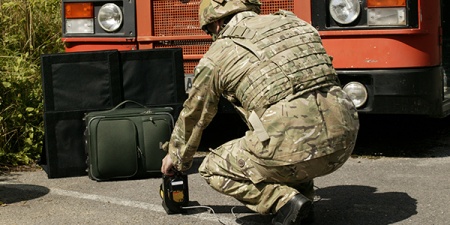

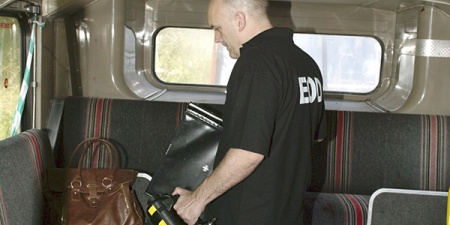

ScanX Scout is primarily used by Military and Police EOD, IEDD and Search Teams, prisons and building security managers for mobile security investigation such as searching unattended bags and suspicious packages. It also has a multitude of other uses such as forensic work, weapons exploitation and the inspection of artifacts, artwork and industrial testing.

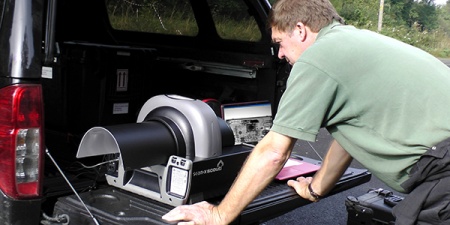

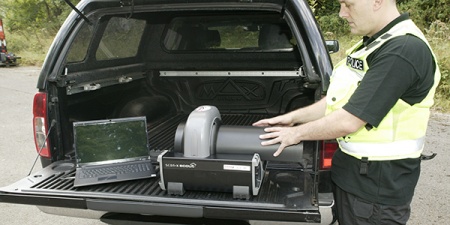

ScanX Scout operates from its own in built battery and is easily set up and deployed in less than 2 minutes by one person.

ScanX Scout Image plates are completely flat and flexible, can be erased automatically after scanning ready for immediate reuse. The x-ray plates are compatible with any of the Golden pulsed x-ray generators, most CP generators and our ScanView Imaging software.

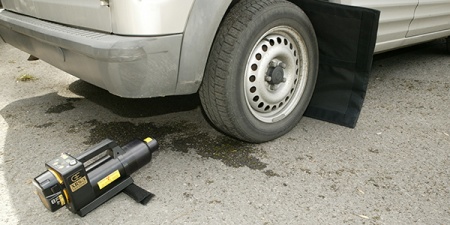

The x-ray plates can be used in multiples (in conjunction with our Flexray system or quadplates) to investigate larger areas. Scanview software then stitches the individually scanned in images into a seamless large x-ray image – ideal for walls, vehicles, longer firearms and weapons.

KEY FEATURES

• Portable and easy to set up and use in less than 2 minutes
• Thin Flexible Image plates in a range of sizes from 8 x 10 IN, 14 x 17 IN up to 14 x 51 IN
• Custom image plates 14? x almost any length
• Image Resolution from 130 – 50 microns and 5 line pairs minimum
• Scan and erase the reusable plates in a single pass
• Battery Powered for mobile field operations

Applications

• IED Search and Investigation
• Contraband Detection
• Forensic Investigations
• Electronic Countermeasures
• Aerospace/Automotive Inspection
• Castings
• Electronic Components
• Museum Conservation / Art studies

X-ray Generators

Works with most portable x-ray sources including the Golden XR150, golden XR200, golden XRS-3 and also recommended continuous x-ray sources

Image processing features

ScanX Scout uses our powerful ScanView software to give you a range of image manipulation options to get all the detail out of your x-ray image. Features include Zoom, inverse Image, b/w, pseudo color, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients.

A range of annotation tools allow you to insert text, notes and highlight suspect areas.

Database features

ScanView’s database software allows you to store and manage images using searchable fields. Raw and Stored images can be immediately exported by email or across a network.

Equipment Service and Support

Our comprehensive equipment support packages provide you with a range of service options to support your equipment in the field and ensure its reliability and performance.

Equipment Service and Support

Our comprehensive global equipment support packages provide you with a range of service options to support your equipment in the field and ensure its reliability and performance.

SPECIFICATIONS

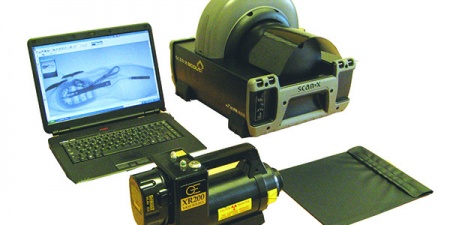

Standard System Configuration

• Digital Image Plate
• ScanX Scout Image Plate Reader
• XR200 X-ray generator
• Spare generator battery
• High specification laptop
• Scanview security imaging software
• USB Data Cable
• ScanX Battery Charging Cable
• Transit Case

ScanX Scout Digital Image Plate Specifications
Plate Dimensions (x-ray imaging area)

• 8 x 10 inch
• 9 x 12 inch
• 12 x 16 inch
• 14 x 17 inch
• 14 x 36 inch
• 14 x 51 inch

Max width of image plates: 14 inch
Max length of image plates: 51 inch

Thickness: < .1 inch

Imaging

Scantime:35-60 seconds

Resolution:130-100 microns

Dynamic Range: 16 bit

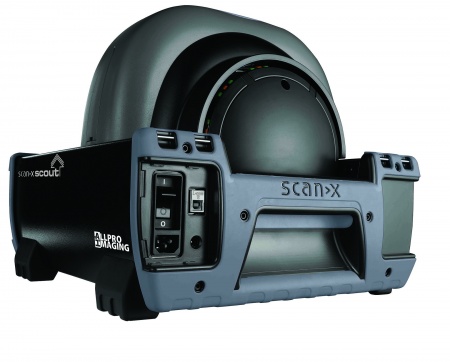

ScanX Scout Image Plate Processor
Size and Weight

Size: 15.5 x 18 x 16 inch (40 x 45 x 40.6 cm)

Weight: 46 lbs (21 kgs) with battery. 41 lbs (19 kgs) without battery

Power

Power Supply: 24 V DC

Laser

Laser: Class 1 Laser Product FDA HHS 21 CFR 1040.10 and IEC 60825-1

X-ray Generators
XRS-3 supplied with standard system configuration

Dimensions:14 x 4.5 x 7.5 inch (35.6 cm x 11.5 cm x 19 cm)

Weight: 12 lbs 5.5 kgs

Penetration:1 inch steel

Photon Energy: 270 Kv

Standard Laptop

• 15.4 inch WXGA Screen (1280x800) Glare / WSXGA+ (1680x1050) Glare
• Intel P8400 Core 2 Duo 2.26Ghz 1066FSB 3MB Mobile
• Vidia GeForce Go 9600M GT 512MB Video
• 2Gb DDR2 800 Memory
• Serial ATA Hard Drive, up to 500GB
• 160Gb Hard Disk Drive
• DVD+/- RW Drive
• Card Reader
• Optional 802.11n Wireless LAN
• RJ-45, USB, VGA
• 10/100 LAN
• Windows 7 Professional (English)

Scanview image processing features

• Zoom, inverse Image, b/w, pseudo color, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients.


• A range of annotation tools: Insert text, notes and highlight suspect areas.


• Image Database and Incident Management Tools
