Scanna | Scanmax 15 Postal Cabinet X-ray systems

The Scanmax family of cabinet X-ray systems guarantees you the high definition X-ray images that you need for the accurate and confident screening of mail for potential hazards and threats. Postal screening is the first line of defence against postal hazards and Scanmax helps deliver security and peace of mind for you and your business.

Scanmax X-ray screeners represent a World Leading investment in the safety and security of mailroom staff and are trusted to deliver top class X-ray imaging in a safe and robust cabinet

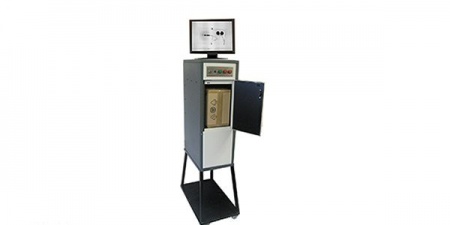

Scanmax systems are designed for ease of use by non-technical staff . Their slim-line design, which includes desk mounted variants means that the use of expensive offi ce and mailroom space is kept to an absolute minimum. There are three models in the product range. The compact Scanmax 15 can be situated on or under a desktop or used in conjunction with an optional wheeled trolley. The Scanmax 25 is floor standing and is ideal for screening larger parcels and briefcases whilst having a similar footprint to a small filing cabinet. The Scanmax 225 is our premium model incorporating an advanced X-ray imaging capability as well as our World-class Scanview X-ray image enhancement soft ware. This allows detailed image investigation as well as having image export, print, email and network capabilities.

Scanmax X-ray units produce clear, definition rich, X-ray images of mail, courier and baggage items to allow operators to quickly and easily distinguish between legitimate and malicious or prohibited items.

Features and Benefits

Mail and courier items are simply placed into the X-ray inspection chamber and a single button action produces an almost instant clear image of the contents.

Scanmax X-ray machines are specifically designed for use by non-technical staff . Their compact design and small footprint means they can be used in even the smallest mailrooms.

To ensure operators can identify powders and IED component parts, Scanmax auto enhances X-ray images for optimum clarity. Additional standard enhancement features include multi-zoom, colour options for highlighting medium and high density materials and inverse, negative feature for highlighting fine wires

Scanmax 225 incorporates our proprietary Scanview image enhancement soft ware that provides a much broader range of features including colour maps for the improved detection of diffi cult to see threats such as white powders and incendiary devices.

Images can be stored directly onto the X-ray machine hard drive or exported as a Windows format file to USB stick, or to a shared network folder. Images can also be printed or emailed externally which allows security decisions to be made without additional personnel having to enter an area of potential danger. The ability to export threat images is invaluable for notifying police to ensure that your threat is correctly escalated.

Scanmax X-ray units use very low level X-rays and conform to International Electrical Safety and Radiation Standards. For your peace of mind and re-assurance, Radiation Safety and Test reports are provided with every system

SPECIFICATIONS

• Image Area Format: :390 mm x 300 mm
• Chamber Footprint: :300 mm x 400 mm
• Chamber Height : 340 mm
• Door Opening: 340mm x 220 mm
• Cabinet Dimensions: Depth: 500 mm Width: 310 mm Height: 890 mm (20 x 12 x 35 Inch)
• Cabinet Weight: 114 kgs
• Power Requirements:110/230V, 50/60 Hz Single phase
• Control Specifications: Key Switch, Power On Light, X-ray On Light, System Ready Light, X-ray Trigger Switch

Included Accessories

• Wheeled Trolley Base
• 17 Inch TFT Colour Monitor
• Trackball Mouse
• Inverse Image
• 3 Colour Maps for highlighting areas of different densities
• 8 x Multiple Zoom

Custom Options

• TCP/IP Network Protocol
• Remote Access
• Printer Connectivity
• 19” Monitor Displays
• Remote Monitor
• Remote X-ray Acquisition
