Scanna | Scansilc 2520 Flat Panel Portable X-ray systems

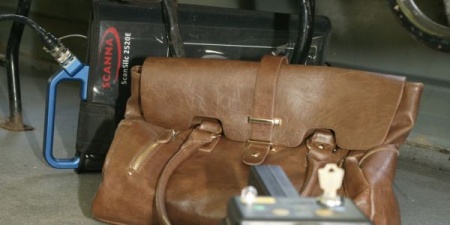

Scansilc is a range of high performance flat panel portable X-ray systems offering high definition image quality for multiple defence and security field applications including IED search and investigation, unattended baggage checks, vehicle inspection cell searches and for detecting weapons and contraband material. Scansilc systems also have applications within the fields of forensics and counter surveillance (TSCM).

The flat slimline panel design allows operators to carry out X-ray work in difficult to access areas, whilst the different image panel sizes provide options for lightweight back-packable systems for rapid deployment tasks and larger image panels for screening larger objects such as unattended bags

Scansilc imaging systems utilise proprietary Scanview EOD X-ray acquisition and image enhancement software and is suitable for users requiring an advanced X-ray screening solution with high definition images in the fields of defence, security and NDT. Images and specific regions of interest can be manipulated within Scanview software and stored within a searchable database for evidential purposes or exported for report writing.

Scanview software is available in different languages including Arabic.

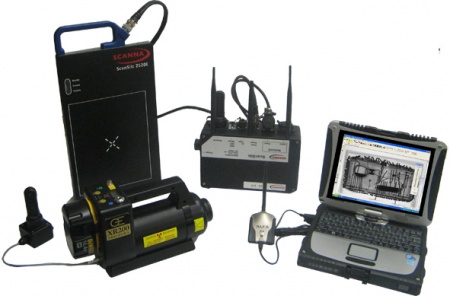

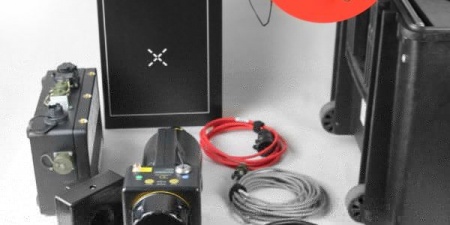

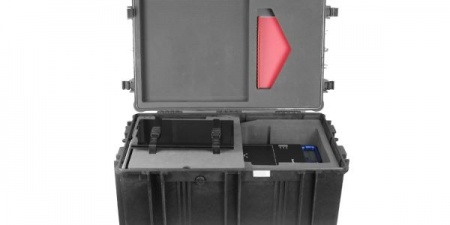

In addition, the Scansilc system can be easily modified to incorporate a dual energy capability. Using this functionality allows operators to create an X-ray image and also determine whether organic material such as explosives or narcotics are present. All Scansilc components - imaging panel, interface control box, laptop X-ray generator, batteries and cables fit into a single ruggedised weatherproof case which can also act as a workstation.

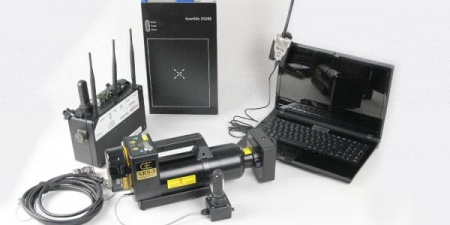

Systems are provided with 50m standard data cable with optional wireless capability to remotely acquire and transmit X-ray images from the detector to the laptop.

Features and Benefits

Scansilc high performance, high resolution flat panel X-ray imagers feature a 14 bit dynamic range to produce clear, sharp digital images in seconds.

Scansilc flat panels are highly sensitive and allow deeper penetration through brick, concrete and steel than conventional X-ray systems.

Scansilc systems are fully portable and all components can operate independently using the battery for up to 5 hours without any reliance on mains power or powered cables during operations. The charging system is integrated within the system case allowing simultaneous charging of all system components.

Scansilc panels are available in three standard sizes: a compact 20 x 25 cm, 30 x 40 cm and a larger 43 x 36 cm size for X-raying larger objects such as hand luggage in a single shot. Custom sizes, backpack and transit case options are available for specific user applications.

X-ray acquisition is controlled from a safe distance using the system’s Scanview software. Multiple X-rays of varying exposure times can be taken in seconds without the need to reapproach the target.

Scansilc X-ray imagers are specifically designed for easy handling in difficult to reach areas and special protective imager covers provide additional strength and durability for challenging defence and security environments and in harsh climates.

SPECIFICATIONS

• Image Area Format: :25 x 20 cm
• Active Imaging Area: :179mm x 238mm
• Imager Size: : 400 x 235 x 25.7mm
• Imager Weight: : 3.3 kgs
• Dynamic Range: : 14 bits
• Resolution: : 3.94 lp/mm
• Pixel Pitch: : 127 microns
• Receptor: : Amorphous Silicon
• Housing: : Aluminium with carbon fibre / aluminium sensor protection

• Dimensions:255 (l) x 90 (w) 190 (h) mm (10 x 4 x 8 Inch)
• Weight:3.8 kgs
