THE MODEL "M" MILLER HEAVY DUTY PAPER DRILLING SYSTEM

The Model M drill combines 3" lift capacity with a host of standard features not found on other paper drill machines, such as fixed table construction, micrometer side gauge, easy operator adjustment of drill heads and electronic display. The Model M machine also comes standard with see-through interlock guards, emergency stop button and an pneumatic braking system.

Each Series "A" Drill is designed for truly heavy duty operation. The "A" Drill will meet the production requirements of the busiest plant, while performing trouble-free for years.

FEATURES

Heavy Duty design for 24/7 operation

Full 3" lift heights

3 H.P. Drive Motor

1-1/2 H.P.ift Motor

Accepts up to 10 drill heads

Variable drill stroke speeds

9" back gauge depth

Easy set-up

Extra thick 1" fixed table

Gear box transmission-No hydraulics

Touch Screen Controls

Backgauge is permanently square

SPECIFICATIONS

Accepts up to 10 heads

Micrometer side guide

Speeds (headrail C.P.M.): Max 26/Min 12

Speeds (spindle R.P.M.): Max 3600/Min 1200

Size of Table: 42" w x 32" k

Table height:37-1/4"

Overall height: 65"

Minimum distance between centers: R and L head: 1-1/4" - 2 R or 2 L together: 1-1/2"

Maximum lift height: 3"

Weight: 1650 lbs.

Shipping weight: 1900 lbs.

Volume 60 x 64 x 76: 168 cu. ft.

Motors: 220v/3 phase/60 hz

Drill sizes: 1/8" to 1/2"

Emergency stop switch

Full see through interlock safety guarding

Auto-brake motor

70 psi compressed air requirement

OPTIONS

Vacuum chip disposal

Silicone Spray attachment for drill bit lubrication

Auto indexing drill stick tape

Dolly for mobility

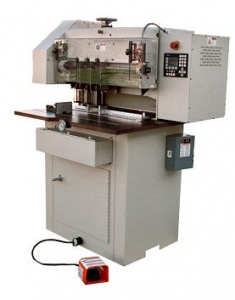

Front tool box as shown in picture

9/16" drills and multi-spindle drill heads
