Description

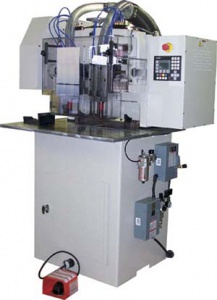

THE LAWSON "B" PAINT CAN DRILL SYSTEM

The Lawson "B Paint Can Drill System is a High Performance Drill System designed for the ultimate in productivity and price performance. The "B" Paint Can Drill System is designed specifically for high volume applications.

The "B" Paint Can Drill is designed for truly heavy duty operation. The "B" Drill will meet the production requirements of the busiest plant, while performing trouble-free for years.

FEATURES AND SPECIFICATIONS

Drill up to 1-1/2" diameter holes

Designed for 2 hole paint can drilling

Touch screen controls

"Slow down-fast" head rail motion

Variable head rail and spindle speed control

Fixed Table construction

Easy adjustment of heads on head rail

Vertical spindle adjustment while operating

Vacuum chip removal system

70 psi compressed air requirement

The Lawson "B" Paint Can Series Drill System: Drilling

Speeds (headrail C.P.M.) Max. 18 Min.12

Speeds (spindle R.P.M.) Max. 3000 Min. 1200

Size of aluminum table 36� x 32�

Table Height 37"

Overall Height 65"

Maximum recommended lift height 3"

Back gauge depth 9�

Drill sizes 3/4� to 1-1/2�

Space between uprights 21-3/8�

Motors 208-240 60 hz - 30 amp

Head rail Motor 1-1/2 H.P.

Spindle Motor 5 H.P

Includes 2 heads

Computer touch-screen for easy operation

POSITIONING

Fixed table construction (rail moves)

Micrometer side gauge

Safety Features

Full see-through interlock safety guarding

Moving Parts guarded

Electric Brake on lift

Skid-proof treadle

Product warranty, preventative maintenance, and field service programs give you that extra peace of mind, knowing that Dexter-Lawson stands behind its products and will help you get the most from your "A" Series Drill (or any other D-L machinery that you have chosen for your plant).
