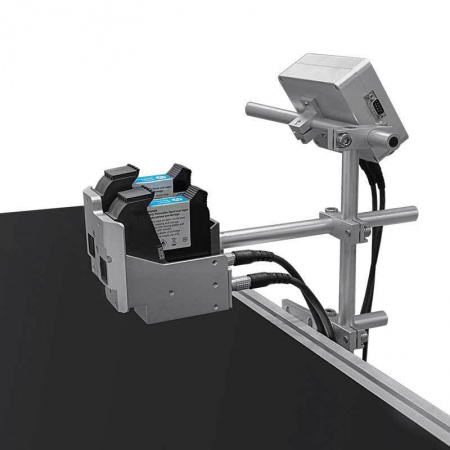

Thermal Inkjet Printers | Sanpacsystems Sanjet BPTT 102 Stitched Printing on Flow Wrapper

The Sanjet BPT 102 comes equipped with two 0.5 Inch printheads for date coding, lot coding, batch coding, printing barcodes, and much more. 9 ink colors are available; black, white, yellow, red, blue, green, and invisible.

There are 3 Sanjet Automatic inkjet Printer models: BPT 101, BPT 102, and BPT 104. The 1, 2, and 4 nomenclature of the part number refers to the number of printheads, and the only thing that changes in the packages is the number of mounting bars, T-brackets, and printhead connector cables. Regardless of the number of heads, every printer comes with a Kit that has everything necessary to mount it to a conveyor.

The BPT 106 and BPT 107 are handheld units, and they come in a hard-shell case that includes the printer gun, a battery, a battery charger, a stylus, and an ink cartridge wipe. This is all you need to print manually. With a Conversion Kit, a Sanjet handheld printer can be used as an automatic printer.

SPECIFICATIONS

• Nozzle TIJ 2.5 Thermal foaming nozzle:
• Operating system Linux:
• CPU Quad core 1.4Hz:
• DPI 600 maximum:
• Screen size: 7 inches
• Language: Multiple
• Shape features Aluminum alloy:
• Dimension Controller: 130*100*42mm, Print head: 90*110*107mm
• Net weight Controller: 0.5KG, Print head: 0.5KG
• Printing height: 12.7mm per print head
• Printing distance: 2-5mm
• Print content Text, time, batch number, serial number, logo, QR code, barcode:
• Storage the system can store more than 1000 message (external USB make the information transfer in a freeway):
• Printing length: 2000 characters for each message, no limitation on length
• Printing speed: 70m/min
• External interface: USB, Photoelectric interface, RS232
• Power Consumption: 30 W
• Voltage: AC: 100-240V 50/60 Hz: DC 16.8A/2A

Working Environment

• Temperature: 0 – 45 Degree C (Best 20-30 Degree C); Humidity: 40% – 60% Rh
• Printing material board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc. :

Compatible Sanjet Ink Cartridge

Sanjet BPT10 Non-Porous (JS10) Black Ink Cartridge
Sanjet BPT 11 Porous Black Water-Based Ink
Sanjet BPT 12 Non-Porous Black Ink
Sanjet BPT 21 Non-Porous White Ink
Sanjet BPT 31 Non-Porous Red Ink
Sanjet BPT 41 Non-Porous Yellow Ink
Sanjet BPT 51 Non-Porous Blue Ink
Sanjet BPT 61 Non-Porous Green Ink
Sanjet BPT 71 Non-Porous Invisible Blue

Demo Video

If you have any questions or concerns, contact a customer service representative today.
