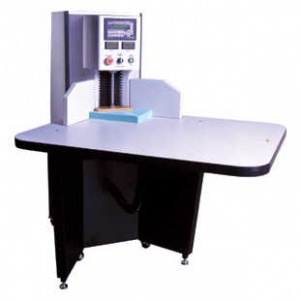

U.S. Paper Counters' COUNT-WISE IMB Sheet Counter & Batch Tabber with Multi-Batching Capabilities

THE U.S. PAPER COUNTERS COUNT-WISE IMB HAS BEEN DISCONTINUED AS OF 07/01/2023.

The COUNT-WISE IMB Paper Counter, Sheet Counter and Batch Tabber with Multi-Batching Capabilities combines high speed counting with multi-batching to give you the speed and flexibility you need to compete in today's market. With the touch pad user interface and large back lit display, you can view and edit your batch amounts during any stage of the job with the touch of a button! The ability to have up to 10 different batch amounts at one time makes the COUNT-WISE IMB ideal for all your counting and tabbing needs.

Customers that currently benefit from U.S. Paper Counts" Products include:

Check Printers, Paper Mills and Converters, Security Printers, Label and Paper Manufacturers, Business Form Printers, Pharmaceutical Companies, Pad Printers, Government Printers, Paper Merchants, General Printers, In-Plant Printers, Magazine and Book Publishers, Silk Screen Transfers, and Stationary Printers.

Standard Features:

Counting speeds up to 2500 CPM

Multi-batching with up to 10 different batch amounts

Large 2 x 20 character LCD display

Tab insertion from 3 to 9999 sheets

One-Button initiation

Touch pad batch entry

Modular construction

Total, batch and overage displays Batch editing

Low tape warning indicator

Six-digit batch and total counters

Solid state electronics

Customize your COUNT-WISE IMB with these Options:

Base cabinet with locking storage compartment & wheels

Coupon tray (for smaller sheets)

Additional jogging plate

Foot-activated start switch

Smaller tables available for COUNT-WISE IMB

Upgrade to a COUNT-WISE MBM (pictured above) designed for large format applications. Its standard features include a 36" x 36" (91 cm x 91 cm) air-flotation table (Counting surface 32" x 32"), base cabinet and two jogging plates.

Larger air-flotation tables available for the CW-MBM

Applications :

Exact Count Deliveries

Maximize Efficiency

Fast, Accurate Counting and Tabbing

Eliminates Miscounts

Check Incoming Stock

Control Quantity at Every Stage

Improve Customer Satisfaction

Specifications:

Net Weight :........202lbs (92Kg)

Height : ........31.5 Inches (80cm)

Width : ........34.5 Inches (88cm)

Depth : ........52 Inches (132cm)

Throat Height : ........8 Inches (20cm)

Table Size : .........28 x 28 Inches (71cm x 71cm)

Sheet Size Maximum : 27 x 27 Inches (68.5cm x 68.5cm)

Sheet Size Minimumn : .........2.25 x 4 Inches (5.7cm x 10cm)

Paper Range : ........14lb. bond up to .010 cover stock (25 g/m* up to 250 g/m*)

Electrical : ........120V AC, 10A or 220/240V AC, 50/60 Hz
