Description

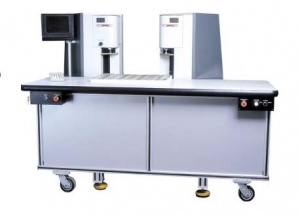

U.S. Paper Counters COUNT-WISE TWIN Double Headed Securities and Bank Note Counter

THE U.S. PAPER COUNTERS COUNT-WISE TWIN HAS BEEN DISCONTINUED AS OF 07/01/2023.

Designed specifically for Securities and Bank Note Printers, the tabbing COUNT-WISE TWIN counts two corners at one time and combines counting speeds up to 2500 sheets per minute, extreme accuracy and one-button initiation to MAXimize profit and efficiency.
The Count-Wise Twin instantly detects shortages and overages, flawlessly checks at every stage and is as simple to operate as it is to maintain. With many advanced features and options, accurate and expedient quantity control is secured for the new millenium. In addition, the COUNT-WISE TWIN can be custom programmed to fit your security counting requirements.

Customers that currently benefit from U.S. Paper Counts" Products include:

Check Printers, Paper Mills and Converters, Security Printers, Label and Paper Manufacturers, Business Form Printers, Pharmaceutical Companies, Pad Printers, Government Printers, Paper Merchants, General Printers, In-Plant Printers, Magazine and Book Publishers, Silk Screen Transfers, and Stationary Printers.

Standard Features:

Total count

Batch count

Overage / underage

Up To 2500 CPM

Single head count and tab

Double head count with tabbing

Visual Security Alarm

Single / Double head security clamp w/ key release

Self Diagnostic Circuits

Real Time Clock and Calendar

8.4 Inch Color LCD Display

Air Flotation Table

Plug In Circuit Boards

Touch Screen user interface

Motorized Head Alignment

Modular Construction

Customize Your COUNT-WISE TWIN With These Options :

Remote Start Switch

Custom Software

Custom Modes of Operation

Specifications

Net Weight: .........975 lbs ( 432Kg )

Height : ........56 Inches

Width : ........72 Inches ( 183cm )

Depth : .........55.5 Inches ( 141cm)

Throat Height : ........8 Inches (20cm)

Table Size: ........30 x 70 Inches ( 76cm x 152cm )

Sheet Size Min ( Single Head ) : 2.25 x 4 Inches ( 76cm x 152cm )

Sheet Size Min. ( Double Head) : 8.5 x 11Inches ( 21.5cm x 28cm )

Sheet Size Max ( Single Head) : 30 x 40 Inches ( 76cm x 102cm )

Sheet Size Max Double Head) : 30 x 40 Inches ( 76cm x 102cm )

Paper Range : ........12lb bond up to .010 cover stock ( 25 g/m* up to 250 g/m*)

Electrical : ........120V AC, 10A or 220/240V AC, 50/60 Hz

how to load tabbing tape



How the Counter Works





Warranty:U.S. Paper Counters (USPC) Count-Wise1 Count-Wise M, Count-Wise III and Bantam have a one (1) year Parts and Labor Limited Warranty. USPC is not liable for any shipping costs involved in the return of defective parts or in the dispatch of replacement parts.
