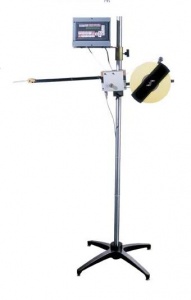

U.S. Paper Counters' SHOOTER-IID High Speed In-Line Tab Inserter and Paper Counter

TO SEE AND / OR ORDER ADDITIONAL OPTIONS FOR YOUR US PAPER COUNTER MACHINE PLEASE CLICK THE ACCESSORIES TAB DIRECTLY ABOVE.
Designed to provide fast, accurate tab insertion at high speeds, the Shooter-II can be mounted to your equipment or be free standing for mobility. The Shooter-II accurately inserts paper tabs into the receding delivery pile of sheeters, presses, paper board machines and paper converting equipment. It can insert tabs at speeds of up to 3 tabs per second. The Shooter-II can be easily connected to your equipment by using a micro switch, universal electronic coupling pick-up or our optional infrared reflective optional sensor.

The Shooter-IID is designed to provide unmatched accuracy, thereby MAXIMIZING press time and insuring precise counts and batching. When positioned at the delivery end of your equipment, the Shooter II's accurately count and insert tabs into the delivery pile of presses, sheeters, folders and other converting equipment with receding pile delivery systems. The Shooter-IID flexible mounting system provides quick set up with virtually any application. Capable of counting at speeds equal to your equipment and inserting up to three tabs per second, the Shooter-IID will insure customer satisfaction and increased profits by eliminating overages and shortages with fast, accurate counting and tabbing.

COMES WITH EITHER A UNIVERSAL ELECTRONIC PICK UP (voltage connection) OR DRY CONTACT (no voltage connection) OR YOU CAN GET OUR OPTIONAL LASER SENSOR WHICH REQUIRES NO CONNECTION TO YOUR EQUIPMENT

Sharp Shooter Option
The Sharp-Shooter option has the additional capability to flag spoilage sheets with the insertion of a red dye marked tab at the beginning and end of the spoilage via wireless remote or touch pad interface. This feature enables you to MAXimize press time by not interrupting production to separate spoilage sheets from good ones.

Customers that currently benefit from U.S. Paper Counts" Products include:

Check Printers, Paper Mills and Converters, Security Printers, Label and Paper Manufacturers, Business Form Printers, Pharmaceutical Companies, Pad Printers, Government Printers, Paper Merchants, General Printers, In-Plant Printers, Magazine and Book Publishers, Silk Screen Transfers, and Stationary Printers.

Standard Features

Tab insertion at speeds of up to 3 tabs per second

Speeds equal to your equipment

Micro switch or universal electronic coupling pick-up>

Count erase

Total and Batch counts

Variable tape lengths

Variable knife cut delays

Back lit 2 X 20 character line display

Touch pad user interface

Options:

Infrared reflective opto sensor

90 degree angle tape chute

Swivel bracket mount (included with 90 deg chutes)

Custom tape chute lengths (16" standard)

Distribution box (allows three or more tabbing heads to be operated by one control unit)

Stagger tabbing

Additional tabbing head

Customize your SHOOTER-II to further enhance productivity with these Options:

Infared Reflective OPTO Sensor

90* Angle Tape Chuts

Swivel Brtacket Mount

Custom Tape Chute Lengths

Distribution Box ( Allows 3 or more tabbing heads to be operated by one control unit)

Stagger Tabbing

SHARP-SHOOTER II Option with Spoilage Marker/ Flagger

Additional Tabbing Head

Additional Base Stand or Swivel Mount

Standard Specifications for SHOOTER-II High Speed Tab Inserter and Paper Counter

Net Weight : ........40 LBS. ( 18KG. )

Maximum Height: ........60" ( 152cm )..with standard pedestal

Minimum Height: ........ 20" (51cm )...with standard pedestal

Electrical: ........110V AC, 3 AMP or 220/240V AC, 50/60Hz

Video showing shooter-IIB on a Heidelberg press from Actual Customer





How the Counter Works
