Widmer RS-PTV Print Only Automatic Transcript Validator

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

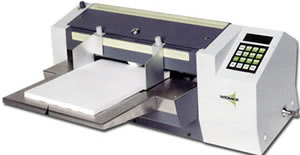

Widmer RS-PTV Print Only Automatic Transcript Validator



The Widmer RS-PTV transcript validator prints the school seal, signs and dates transcripts/documents in one pass through the high speed imprinter at a rate of 180 documents per minute; it does not emboss.

The RS-TV comes equipped with an automatic feed to load the transcripts into the machine for imprinting. The college's seal is printed onto the paper. The registrar's signature, title, institutional name, and date are imprinted in indelible ink. This is one of the only machines designed to replace manual stamping and signing of each school transcript.

Dual security locks provide secure protection. Dual counters track the number of transcripts being processed.

The customer is required to send artwork or legible copy of the:

  • seal
  • signature, signed three times in blue or black ink on white paper
  • official title of the person signing
  • a sample of the document(s) that will be stamped.

    This information will be used to tailor the validator to the customers' needs.

    Widmer machine cases are made from die cast metal for years of heavy duty use. You can count on Widmer to out-perform and outlast the competition.

    Features

  • Automatic Feed Signatures are imprinted in indelible ink and date validated
  • Includes a Batch and non-resettable counter
  • Ability to process small forms, legal, and European size papers
  • Includes nine programmable presets to reduce operator input and setup time
  • Rugged construction including steel hardened shafts, self lubricating bearings, and high torque stepping motors

    SPECIFICATIONS

  • Dimensions: 9" H x 24 1/2" W x 12" L (20" with extension tray)
  • Weight: 55 lbs.
  • Shipping Weight: 65 lbs.
  • Maximum Speed: 12,000/hr. (with 3-1/2" check)
  • Maximum Paper Size: 15-1/2" x 16"
  • Minimum Paper Size: 2-7/8" x 2-7/8"
  • Power: 120V/60Hz
  • Hopper Capacity: 200 Single Ply Optimum/300 Single Ply Maximum
  • Ink Roller Colors: Black (standard), Red, Tri-Color
  • Roller Life: 750,000 Impression
  • Drum Selections: Imprint, Signature, Date

    Additional Available Widmer RS Options

  • Extra manual set number Wheels
  • Power: Electrical 220/240-50Hz
  • Side-by-side Drums


    Extras for RS Series Only

  • Single signature and saddle
  • Extra signature
  • Border or background
  • 4 lines of text and saddle
  • Each additional line of text
  • Logo
  • Saddle, blank S& O
  • Saddle, blank D-Date or N-Number
  • Saddle, blank MN-Number
  • Saddle, blank DMN-Date and Number
  • Drum, S & O
  • Drum, wheels date (D)
  • Drum, manual set wheel number (MN)
  • Drum, manual set wheel date and wheel number (DMN)
  • Ink roller black (Standard)
  • Ink roller, Red or blue
  • Ink roller, tri-color (blue,red,purple)
  • Saddle with "base lock" type segments date or number
  • Saddle with "base lock" type segments date and number
  • Double document detector

  • Specifications

    Manufacturer Part #: RSPTV
    Dimensions (LxWxH): 20.00in. x 25.00in. x 10.00in.
