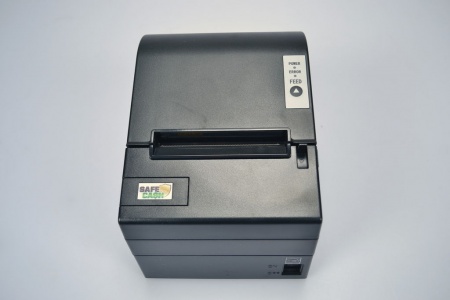

Wincor Nixdorf TH200 Pos Thermal Receipt Printer with Custom Cable - Serial Port
Description
Wincor Nixdorf TH200 Pos Thermal Receipt Printer with Custom Cable - Serial Port
This Printer is compatable with the CD-2000 and SD-800 and other Mixed Bill Counters. Due to different connectors on different Counters,a customized Cable is needed for each model.
This Wincor Nixdorf TH200 High Speed Thermal Receipt Printer. Unit is in New Open Box condition in original packaging. This printer has a RS-232 Serial port and auto-cutter is installed. Please see the attached technical data below. Printing Method = Thermal Direct (203 x 108dpi, 640 dots/ line) Paper Width =Adjustable 82.5/ 80.5/ 76/ 69.5/ 57.5 mm. Paper Roll Diameter = Max. 83.00 mm Cash drawer Interfaces = 2 Receipt Cutter = > 1.5 million cuts Baud Rate = Up to 57.6kbps Font = 9 x 17/ 12 x 24 Barcodes = UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, CODE 93, CODE 128, ITF, CODABAR
- The TH200 POS printer is a full featured thermal receipt printer designed for use with modular BEETLE POS systems and PCs.
- High printing speed with autocutter enables receipt shooting thereby resulting in high throughput and speedy transactions.

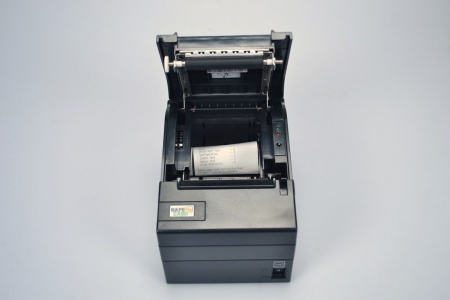

- Paper handling is easy, just drop and print. The printer can accommodate 5 different paper roll widths with roll diameter up to 83mm.
- Powerful graphics capability makes it especially suitable for printing coupons and gift vouchers with barcodes. Symbol printing, logo printing, character scaling and rotation are additional features that help to generate attractive printouts.
- The autocutter can perform partial or full cut and the printer can support 2 cashdrawers. POS systems using PCs will find these features to be especially convenient.
- The easy-to-clean thermal print head coupled with highly reliable mechanisms ensure low maintenance costs.
Product features
- High Printing Speed 150mm/sec - Autocutter
- Low-Noise - Easy Changing of Receipt Rolls
- Firmware Easily Upgradeable through FLASH Downloads
- Graphics Capability - Easy Maintenance & High Reliability
- Support Multiple Languages (Korean, Thai, Japanese, Simplified/ Traditional Chinese)
- Small Footprint
- Available in Light Grey or Black
SPECIFICATIONS
- Printing Method :Thermal Direct (203 x 108dpi, 640 dots/ line)
- Printing Positions :42 (Standard); 56 (Compressed)
- Printing Speed : 150mm/s
- Font : 9 x 17/ 12 x 24
- Paper Width : Adjustable 82.5/ 80.5/ 76/ 69.5/ 57.5 mm
- Paper Roll Diameter : Max. 83.00 mm
- Barcodes : UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, CODE 93, CODE 128, ITF, CODABAR
- Sensors : Paper Low, Paper End, Cover Open
- Power Supply : 24V +/-7%, from BEETLE POS or External Power Supply
- Receipt Cutter : > 1.5 million cuts

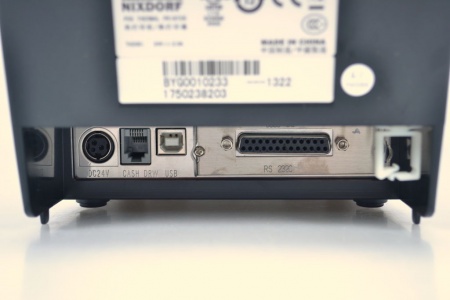

- Choice of Interfaces : RS232c, Parallel
- Cashdrawer Interfaces : 2
- Baud Rate : Up to 57.6kbps
- Ambient Temperature (Operation) : 5 - 45 oC
- Dimensions (H x W x D) : 143 x 144 x 188 mm
- Weight (approx.) : 2.7 kg
- Options : Black Mark Sensor / External Power Supply Unit / Wall Mount Kits
- Other Features : Service Life of Thermal Print Head = 100 million pulses/ >100km Loadable Character Set - Chinese (Simplied/Traditional), Japanese, Korean, Thai
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | TH200 |
| Dimensions (LxWxH): | 8.00in. x 6.00in. x 6.00in. |
SPECIFICATIONS
| |
