Description

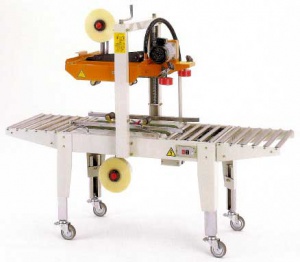

Truline TP-703-LP Low Profile Semi Automatic Carton Sealing Machine with Top and Bottom Drive Belts- MIN. Height - (2')

The Truline TP-703-LP is a semi automatic uniform carton sealer with easy manual carton size adjustment. Top and bottom 4 belt design. Features the new universal tape head that will run 2" or 3" tape with no changeover required. The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The PP-703 applies a single tape strip to both the top and bottom of the case simultaneously. This 4 belt drive (two top belts and two bottom drive belts) is a heavy duty versatile machine designed for dependable performance and easy operation. The PP-703 can easily be adjusted in only seconds to process a different size carton.

SPECIAL FEATURES

• Unique Universal Tpe Head will run 2" or 3" Tape
• Interchangeable Tape Heads
• Side Pressure Rollers to Close Box Top
• Bottom Tape Air Blower
• 4 Drive Belts- Positive Feed
• Heavy Duty Locking Casters
• Fully Adjustable Bed Height
• Adjustable Tape Tension

	TP-703 CLICK HERE	TP-703LP CLICK HERE	TP-703-26 CLICK HERE	TP-703-36 CLICK HERE
Carton Length	Min.-6" Max.-Infinite	Min.-6" Max.-Infinite	MIN.-6" MAX.-Infinite	Min.-6" Max.-Infinite
Carton Height	MIN.-4" MAX.-20"	MIN.-2" MAX.-20"	MIN.-4" MAX.-26"	MIN.-4" MAX.-36"
Carton Width	MIN.-7" MAX.-19.75"	MIN.-7" MAX.-19.75"	MIN.-7" MAX.-26"	MIN.-7" MAX.-36"
Tape Head Feet	2" or 3"	2" or 3"	2" or 3"	2" or 3"
Top or Bottom Tape Head	Both	Both	Both	Both
Machine Dimensions (LxWxH)	44"x 27"x 53'	44"x 27"x 53'	44"x 27"x 53'	44"x 27"x 53'
Machine Speed	75 Ft. per Min.	75 Ft. per Min.	75 Ft. per Min.	75 Ft. per Min.
Machine Weight	260 Lbs.	260 Lbs.	260 Lbs.	260 Lbs.
Electrical	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps	110 Volts 1 Phase 10 Amps
Stainless Steel	AVAILABLE	NO	NO	NO
