Description

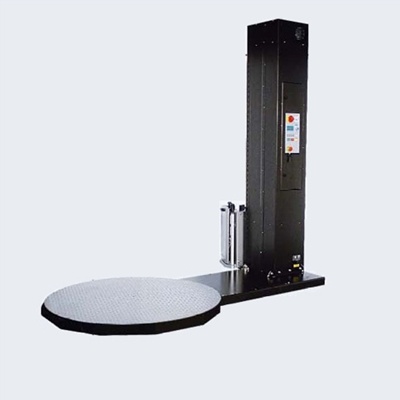

Preferred Pack PP-982LP Semi Auto Low Profile Pallet Wrapper

Semi automatic pallet wrapper with Electro-Mechanical Brake Stretch up to 150%, 4000 lb. Load Capacity, Photo Eye, "Easy Thread Design" and HMI Touch Screen with Programmable Memory.

Product Details

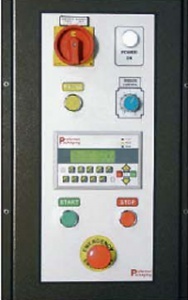

• PLC Control with 12 Program Memory
• On/Off Switch
• Top Wrap Count
• Bottom Wrap Count
• Start / Stop
• Manual / Automatic
• Pause Button
• Film Tension Control
• Turntable Speed
• Film Carriage Speed
• Emergency Stop Switch

Specifications

• Production Rate: 30-40 Loads Per Hour
• Power Requirements: 110 Volts, 1 Phase, 15 Amp
• Maximum Load Size: 50"L X 50"W x 85" H
• Maximum Load: 4,000 Lbs.
• Turntable: 59" Diameter 3/8" diamond plate
• Turntable Drive:1/2 HP AC Variable Speed ( 0-12 rpm )
• Turntable Drive Method: Heavy Duty Chain ANSI #60
• Turntable Support: Heavy Duty Delrin Roller Assembly.
• Film Delivery System: Electro-Mechanical Brake Stretch System Designed to stretch film up to 150%
• Machine Dimensions: 108" L x 59" W x 102"H
• Carriage Elevator:Variable Speed 1/2 hp - Drive Belt
• Controls: PLC Control with 12 Program Memory
• Shipping Dimensions:129"L x 66"W x 30"H
• Forklift Portable: Yes
• Photo Eye: Will Automatically Seek Height of Load
• Home Position: Turntable Will Automatically Return to Home Position
• C.E. Approval: Exceeds OSHA Safety Standards
• Film Capacity: All Commercial Stretch Film 20" Wide
• Warranty: 3 Year Limited Warranty
• Shipping Weight: 1,800 Lbs.

Optional Features

• 72" Diameter Turntable
• Tower Extension to 105"
• Base Extension of 24"
• Load Stabilizer - Top Pressure Plate
• Weight Scale Packages
