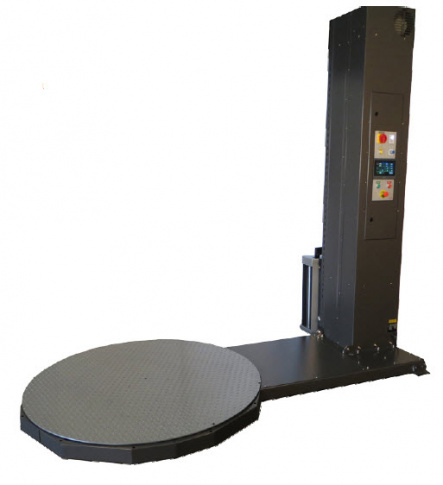

Preferred Pack PP-983 HP High Profile Pallet Stretch Wrapping Machine

The Preferred Pack PP-983 HP is a valuable addition to any packaging situation. The Preferred Pack PP-983 HP Pallet Wrapper is an extremely easy to use and understand Pallet Wrapper. This Pallet Wrapping Machine has all the bells and whistles which are available on any top of the line Pallet Wrapper, yet still is simple to use and understand for any level operator. The Preferred Pack PP-983 HP has an adjustable PHOTO EYE, which makes it possible to control over wrapping. No More Wasting Wrapping Material, no matter how tall or at what height the operator is, this feature will tell you how tall each pallet is, and automatically stop wrapping at that level.

The Preferred Pack PP-983 HP High Profile Pallet Stretch Wrapping Machine is a Semi automatic pallet wrapper with mechanical pre-stretch and digital controls. The Preferred Pack PP-983 HP Pallet Wrapper has a 10 program memory, Variable wrap count, 3,000 lb capacity, fixed speed turntable, standard machine accommodates pallets up to 85" high, Heavy duty belt drive for film carriage, #50 heavy duty drive chain on turntable, 14 sets of double roller turntable supports, 59" heavy duty turntable with diamond plate non-slip surface. 110 volt power.

FEATURES

• 225% Pre-Stretch: 3 ft. of film going through pre-stretch rolls comes out 10 ft. of film onto load. Other pre-stretch gearing available with simple sprocket change
• Patented Triple knurled roller pre-stretch system with 225% powered pre-stretch. Easy Thread design with safety door; if opened, shuts off machine.
• Heavy Duty Chain Drive on turntable with 18 sets of double roler turntable supports.
• Photo Eye: Will automatically seek height of pallet load
• Reinforcing Wrap: Allows machine to apply multiple wraps at any desired location
• Home Position: Turntable always returns to original position
• Automatic or manual operation switch
• Adjustable wrapping tension
• Adjustable turntable speed
• Adjustable carriage elevator speed
• Film Break Re-Start: If film brakes during operation, simply press START button again to continue program cycle. No need to start from the beginning again.
• Top and Bottom Wrap Counter: Allows operator to select number of wraps on top or bottom of load.
• Film carriage security door with safety interlocks: If door is opened, machine will automatically be shut off.
• Emergency stop switch: When activated will shut off machine.

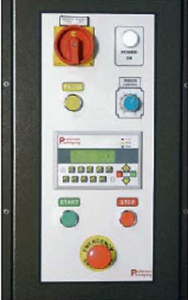

Easy to Use and Understand Front Control Panel

• PLC with 10 Program Memory
• Bottom and Top Wrap Count
• On/Off Switch
• Emergency Stop Switch
• Start/Stop Switch
• Manual/Automatic Mode
• Pause Botton
• Film Tension Control
• Turnable Speed
• Film Carriage Speed

SPECIFICATIONS

• Maximum Load Size (LxWxH):.... 48 x 48 x 85 INCHES
• Maximum Load Weight:.... 3,000 Lbs. Dynamic
• Machine Dimensions (LxWxH):.... 96 x 58 x 102 INCHES
• Crated Size (LxWxH):.... 120 x 62 x 30 INCHES
• Estimated Shipping Weight:.... 1,200 Lbs.
• Turntable Diameter:.... 59 INCHES
• Turntable Drive:.... Fixed speed of 10 RPM Mechanical break stretch
• Turntable Drive Method:.... Heavy duty chain drive
• Turntable Support:.... Heavy Duty Delrin Rollers w/Sealed Bearings (very quiet)
• Carriage Elevator:.... Fixed speed
• Warranty:.... 1 years on all components
• CE Approved:.... Exceeds OHSA Safety Standards.
• Power:.... 110 volts - 10 amps - single phase
• Machine Weight:.... 1,000 lbs
• Ramp :.... Not Included
• Controls:....
  1. Omron Relays and Inverters
  2. Forklift Portable
  3. Positive Alignment



PALLET WRAPPER ACCESSORIES

• 5,000 capacity turntable 983 only
• 105'' Wrap height
• 72''½ Diameter turntable
• Extra Ramp
• Pneumatic Top Pressure Plate for PP 983 Only. * Air required
• Base Extensions-24 INCHES
• PP-983 5,000 lbs weight Scale Packages using load cells
• Photo Eye-PP981
• Insta cut - Automatic film severance for PP-983 only
• Automatic film cut off and attachment uses remote start lanyard
