Description

Pouch Seal Machine | Preferred Pack E-300 High Speed Rotary Pouch Sealing Machine (Pick, Fill & Seal)

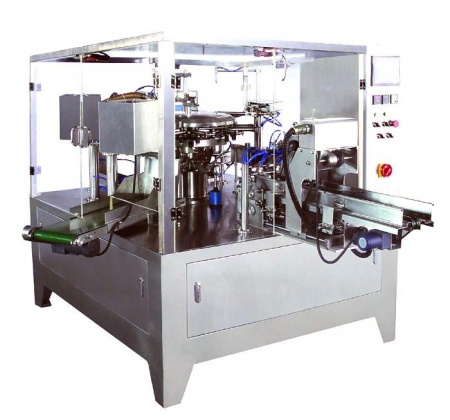

The E-300 series rotary pouch sealing machine is an 8 station intermittent motion bag sealing machine. The pre-made bags are loaded manually into the magazine at station #1 The bags are picked up from the magazine using suction cups to place the bag into the first holding station. The pouches are advanced in succession to each subsequent station where the bag is opened, then filled (the pouch 'Fill' signal is generated by the dosing system via Auger filler or weigh scale) then sealed and finally discharged at up to 30 BPM.

The E-300 is usually connected to some type of weigh fill system such as a multi-head weigh scale, volumetric cup filler, auger filler or piston filler depending on the fill volume of the bag and customers speed requirements.

SPECIFICATIONS

• Description: For Pre-Made Bags
• Production Rate: Up to 35 BPM
• Fill Volume: 1000 ML (34 oz or 2 lbs)
• Bag Width: 100-200 mm (4 inch-8 inch)
• Bag Length: 100-300 mm (4 inch-12 inch)

DEMO VIDEO
