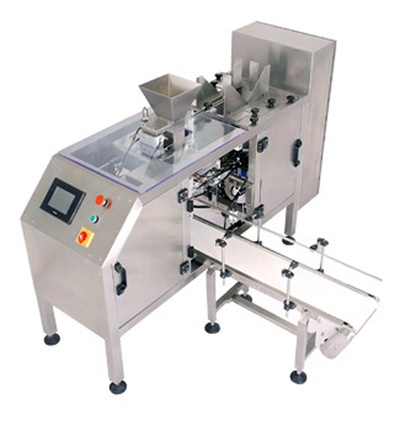

Pouch Seal Machine | Preferred Pack E-39 Pouch Seal Machine - Pick, Fill and Seal

The E-39 is a Pick, Fill and Seal machine designed for individual pre-made bags, stand up pouches or zippered bags and can support 4 sided sealed bags.This machine is designed to accommodate a wide fill range and product types such as snacks, cereal, coffee, tea, rice, nuts, candy, granular, powder or liquid products.

The E-39 is designed to be integrated with a multi-head weigh scale, volumetric cup filler, piston filler or auger filler. The pre-made nags are loaded into the magazine and grippers take the bag opens it then fills it and seals it and discharges the completed bag at speeds of 12-15 BPM. Features Omron PLC and is constructed of #304 Stainless Steel. Bag size: 4.72-12.5inch W x 6inch-17.7inch L

SPECIFICATIONS

• Description: For Pre-Made Bags
• Production Rate: Up to 15 BPM
• Fill Volume: 2500ML (84oz or 5lbs)
• Bag Width: 120-320mm (4.72-12.6inch)
• Bag Length: 150-450mm (6inch-17.7inch)
