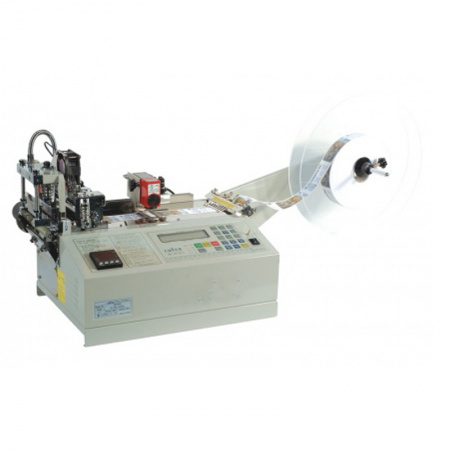

Cutting Machines | Preferred Pack TBC-50-SH Cutting Machine Non-Adhesive "Hot" Cutter

This NON ADHESIVE "HOT" CUTTER includes a highly accurate photo sensor and hot knife. This machine is designed for cutting labels that might fray.

FEATURES

• Adjustable temperature control
• Cuts up to 4.33" (100mm) wide material or multiple rolls
• High speed - can cut up to 140 pieces per minute at 2" (50mm) in length
• All electric microprocessor controlled
• Automatic shut off - stops automatically if material runs out during operation
• Easy to use - set length, quantity and feed speed; then press start
• Adjustable pressure on feed roller for thin or smooth materials
• Accuracy - by means of stepper motor
• Cutter safety guard included
• No tooling required to cut different materials
• Cutting blade is made of high-speed steel

PRODUCT SPECIFICATIONS

• Cutting Knife hot-cutting (250-400°C)
• Max. Width: 90mm
• Speed: 120 - 140 cuts/min (50mm)
• Range of Cutting length: 15mm~300 meter
• Weight: ca. 25,6kg

Accuracy

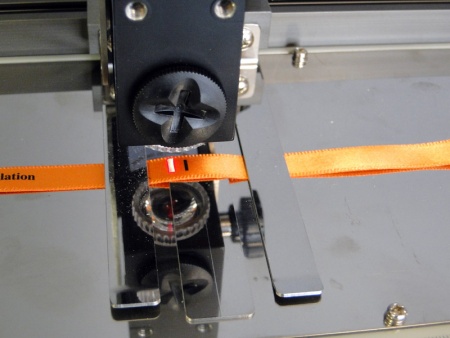

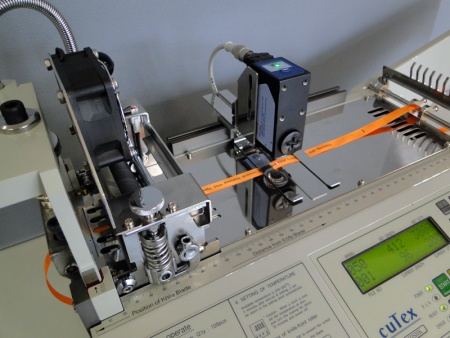

The stepping motor ensures a precise cutting length. The label will be cut exactly at the marking due to the sensor module which recognizes the mark.

Cutting Type
Because the hot knife melts the end of the tape, cutting is sealed neatly without any fraying.

Anti-Statc
The anti-static device is useful for cutting labels which generate a lot of static electricity, preventing processed labels from clinging to the knife blade.

Temperature
Cutting temperature can be set via an electronic control panel. Temperature is regulated by a temperature control unit.

Automatic Operation
Device works automatically by setting length and quantity.

Auto-Stop
Device stops automatically if materials run out during operation.

Memory
Set-length, set-quantity & set-speed are not erased even if power is turned off & on.

Characteristics

• heat cutting with sensor control
• sensor scans material for cutting position
• for woven label with cutting mark
• adjustable cutting temperature
• max. cutting width 90mm
• auto-stop on end of material
• easy to use
• compact design

Cutting Material

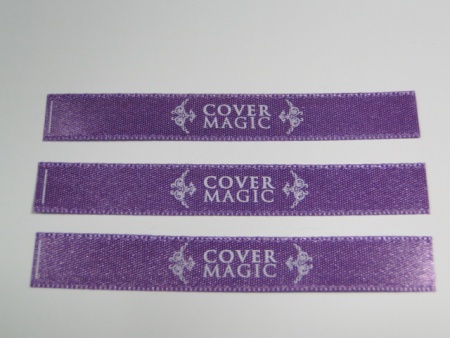

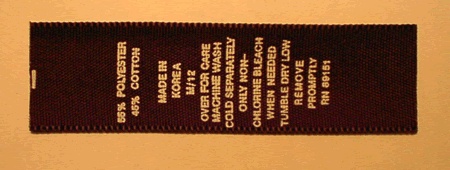

• woven printed label
• woven label
