Cutting Machines | Preferred Pack TBC-50S Printed Label Cutter with Sensor-Cold
This machine is designed for cutting labels (fabric, plastic, metal, etc.)

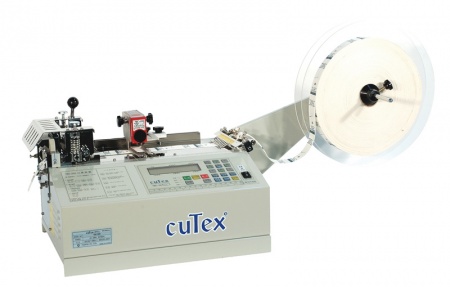

The TBC50S Heavy-Duty Printed Label Cutter automatically dispenses, measures, and cuts printed labels (fabric, plastic, metal, etc.) using a high precision photosensor. It's ideal for heavy production to cut all kinds of label materials quickly and easily. The TBC50S cuts up to 4.33inch (110mm) wide material or multiple rolls. The built-in high speed operation cuts up to 140 pieces per minute at 2inch (50mm) in length.
FEATURES
- This machine is designed for cutting labels (fabric, plastic, metal, etc.)

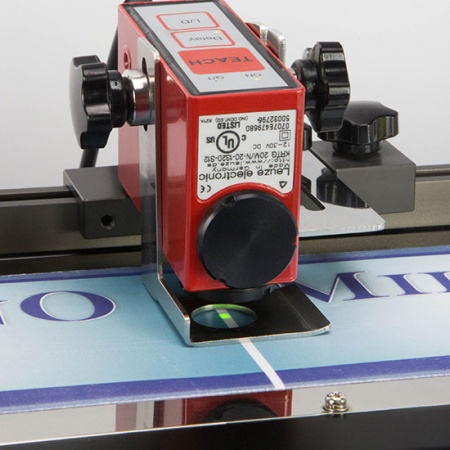

- Includes a highly accurate photo sensor
- Adjustable temperature control
- Cut up to 4.33inch (110mm) wide material or multiple rolls
- High speed - can cut up to 140 pieces per minute at 2inch (50mm) in length
- All electric microprocessor controlled
- Automatic shut off - stops automatically if material runs out during operation
- Easy to use - set length, quantity and feed speed; then press start
- Adjustable pressure on feed roller for thin or smooth materials
- Accuracy - by means of stepper motor
- Cutter safety guard included
- No tooling required to cut different materials
- Cutting blade is made of high-speed steel (HSS)
PRODUCT SPECIFICATIONS
- Model # TBC50-S
- Max. Width: 4.33
- Cut Length: .04 to 394
- Max. Material Thickness: 25
- Feed Speed: 105' (32m)/min. 21
- Accuracy of Cut: +/-.04
- Max Outside Diam of Roll: 18
- Length and Count Settings: digital
- Feed and Cut: automatic
- Dimensions: 17inch(L) x 13inch(W) x 19inch(H)
- Weight: 39 lbs (17.5 kg)
- Electrical Requirements: 100/120V 50/60Hz, <1 amp (230V 50/60Hz available)
TBC-50S Printed Label Cutter with Sensor-Cold
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Dimensions (LxWxH): | 17.00in. x 13.00in. x 19.00in. |
