Description

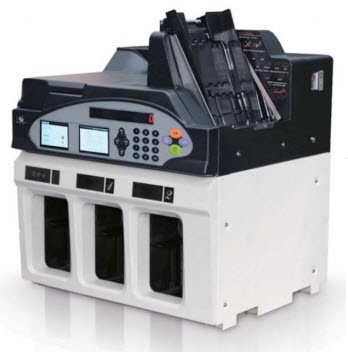

Ribao DC-3200 2+1 Pockets Banknotes Fitness Counter Sorter

This counter has many functions, such as counting, edition sorting, orientation sorting, sorting banknote for ATM machine, adding, batching, serial number checking, output and connecting LAN etc. Display the banknote number of every pocket separately.

FEATURES

• Adopted the cutting-edge CIS, DSP technology. Identification and control system use FPGA+DSP structure, more CPU in processing.

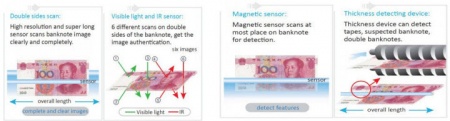

• Auto detect counterfeit banknote by using Light Image, IR Image, Spectrum Image, Magnetic Image, UV, Magnetic Ink, Thread Metal, IR Penetration, Multipoint Thickness Measurement etc. Error code indicated and alarm sound when find fake banknote.
• Detect incomplete, damaged, holes, fold, pen marks, oil, overlapped, spliced, tape and double on the banknote.
• Separate the suspected notes from damaged notes, easy to organize notes, reduce the workload.

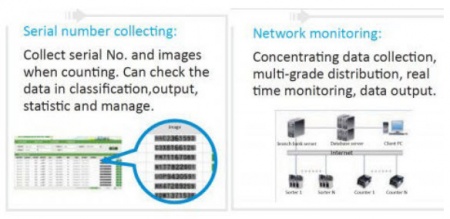

• Have many functions, such as counting, edition sorting, orientation sorting, sorting banknote for ATM machine, adding, batching, serial number checking, output and connecting LAN etc. Display the banknote number of every pocket separately.
• Adjustable sensitivit, auto storage, self checking after being switched and displaying the error code, restorable to default settings.

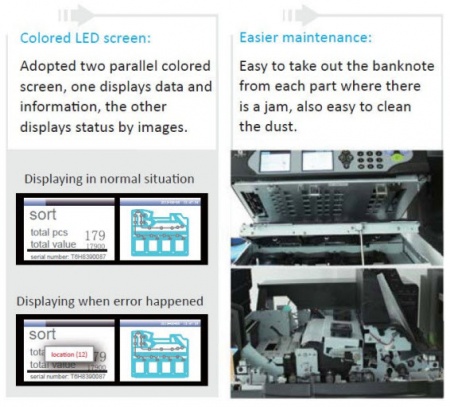

• Super LCD display, attachable to portable-type LED display.
• Software upgrading via internet or U disk.

SPECIFICATIONS

• Available currency: As your requirement
• Counting speed: 720-800pcs/min
• Number of pockets: 1 Hopper, 2 pockets, 1 rejecting bill pockets
• Hopper capacity: 1200pcs
• Stacker capacity: 500pcs
• Rejecting bill capacity: 150pcs
• Image-scanning-as recognition technology: Adopted double sides high-speed image scanner, Gray scale of image: 256 levels, Optical definition: 200dpi, Artificial neural networks
• PC interface: USB2.0, RS-232 serial port
• Rated Voltage: 220V（±10%）or as required
• Frequency: 50Hz (±5%)
• Power: ≤400 W
• Rising temperature: ≤20 ℃
• Appearance dimension: 500×440×600（mm）
• Weight: 60kgs
