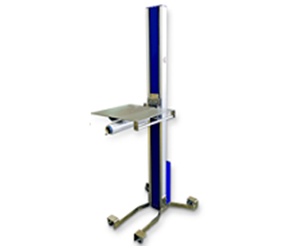

HERCULES Lifter & Stretch Wrapper All-in-One



Two systems, Two machines for the price of one: HERCULES LIFTER & STRETCH WRAPPE


Thanks to the "TRANSFORMER"® device, the lifter and assistant for the stacking of the pallet, Hercules, can be immediately converted into a stretch-film wrapper, without parts to be mounted or removed.


HERCULES saves time and protects the health of your workers.


The manual lifting of heavy items and the manual stretch-film wrapping involve serious health risks. Repeated bending and twisting of the torso, violent shocks to hands, shoulders and fingers. Repeated gyrations while moving backward, with a stretch-film roll hold in the hands, requiring it to be tightened and pulled.


TECHNICAL CHARACTERISTICS IN LIFTING MODE

  • Dimension of the lifting plate: 500 x 450 mm
  • Lifting plate in aluminium
  • Maximum lifting height: 2000 mm
  • Maximum lifting weight: up to 70 kg, with decreasing steps

CAUSE
pain or injuries in back, shoulders, knees and other parts of the body, abrasions, wounds to the hands and fingers lightheadedness and dizziness with risks for the equilibrium and the physical fitness

EFFECTS
Save fatigue to the operator, giving him back confidence and enthusiasm. Hercules increases the productivity and the profitability of the labour, improving the result: it helps and it allows the stretch-film wrapping of higher loads and, in the lifter version, it gives a great help in the preparation of the load.

WITH HERCULES, PUT A STOP TO PROBLEMS AND TO PAINS

HERCULES TO THE RESCUE – Hercules increases the productivity and the profitability of the labor, improving the result: it allows the stretch-film wrapping of higher loads and, in the lifter version, it gives a great help in the preparation of the load.

LIFTING MODE –
  • Dimension of the lifting plate: 500 x 450 mm
  • Lifting plate in aluminium
  • Maximum lifting height: 2000 mm
  • Maximum lifting weight: up to 70 kg, with decreasing steps

STRETCH-WRAPPER MODE
  • Pre-stretched film with 9-10-12-15 ?m thickness
  • External film roll diameter 120 mm
  • Stretch-film roll height 440/450 with a max core-holder height of 460 mm
  • Internal core Ø: 55 mm
  • Maximum pallet height: 2000 mm
  • Adjustable film carriage speed
  • Regulation of the stretch-film tension through mechanic brake
  • Quick release system with the set brake level

TECHNICAL CHARACTERISTICS IN STRETCH-WRAPPER MODE

  • Pre-stretched film with 9-10-12-15 μm thickness
  • External film roll diameter 120 mm
  • Stretch-film roll height 440/450 with a max core-holder height of 460 mm
  • Internal core Ø: 55 mm
  • Maximum pallet height: 2000 mm
  • Adjustable film carriage speed
  • Regulation of the stretch-film tension through mechanic brake
  • Quick release system with the set brake level
