Description

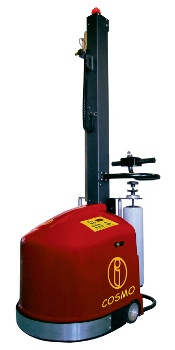

Italdibipack COSMO Pallet Wrapping Robot

COSMO is the only pallet wrapping robot that circles the load without direct contact. It is the only suitable solution for loads with overhanging parts, with an irregular base (due to either the pallet configuration or the characteristics of the products loaded on it) which may block the detecting wheel in the â€œtraditionalâ€ robotic pallet wrapper.

SEE VIDEO BELOW
FEATURES

High-technology with a very simple and friendly usage

Possibility to set up to 6 working cycles with separate parameters

Machine propelled by sealed maintenance-free batteries which do not require any filling or to move the robot in a dedicated loading area

Exclusive and modern design

Fixed mast of the film tension through a mechanic brake

Film carriage with chain transmission

The machine works with standard stretch-film rolls (thickness 19-40 , width 500 mm)

Easy and fast regulation of the optical sensor for the highest wrapping point

Easy driving and moving for transferring the machine to the next wrapping point (push for an easy forward/backward and turning left/right of the machine, plus the film carriage moving upward/downward)

Acoustic signal at the starting of the working cycles

TECHNICAL SPECIFICATIONS

Dimensions: 1000x600x2100 mm | 39.3x23.6x82.7 inches.

Weight: 230 Kg | 507 lbs.

Power supply: 110 / 240 v - 1 hP

Maximal wrapping height: 2000 mm | 78.75 inches.

Minimal and Maximum pallet dimensions: Minimal 500 x 500 x 500mm | 19.7 x 19.7 x 19.7 inches | Maximal pallet dimension: Unlimited

Shipping dimensions 800 x 1200 x 2300 mm | 31.5x47.25x90.6 inches

Gross shipping weight 260 Kg | 573 lbs.
