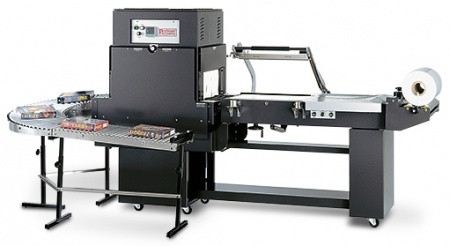

Preferred Pack PP1622-MKA Combo L'Bar Sealer and Shrink Tunnel System on One Frame
PP1622MK-Combo L'-Sealer and Shrink Tunnel are built on the same frame. It is the first fully adjustable Combination L-Sealer with attached Shrink Tunnel including the latest Micro Knife Technology. No more seal wires to replace! The L-Sealer is 16 x 22 inches and mounted on linear bearings, easily moves forward or backward to center product into the Tunnel and the Discharge Conveyor on the L-Sealer also adjust up and down. The Shrink Tunnel is 18W x 28L x 8H inches and features a fully recirculating air chamber with live roller rod conveyor, digital temperature control, adjustable air velocity and a convenient crank handle to adjust the tunnel up and down to match sealer conveyor height. Unibody frame makes this unit easy to move around. Includes one 8ft power cord.
FEATURES
- Standard Features of the L'Sealer
- Micro-Knife Band Ribbon (Optional, has 1 year warranty)
- Power Belted Discharge Conveyor
- Dual Magnet Clamping
- Pin Perf. Hole Punch
- Variable Dwell/Seal Time
- Stainless Steel Compensators
- Seal Size 16" W x 22" L
- Seal Head Return Cylinder
- Stainless Steel Film Clamps
- Locking Casters
- Linear bearings allow forward or backward movement
- Easy-load film cradle with brake
- Available Options:
- Micro Knife Band Ribbon (1 year warranty)
- Air operated push button seal head with automatic cycle timing
- Powered film unwind
- Adjustable inverting head
- Stainless steel frame
- Standard Features of the Shrink Tunnel
- Fully re-circulating air chamber
- Live or dead roller rod conveyor
- Digital temperature control
- Adjustable air velocity control
- State-of-the-art AC Variable Speed Drive
- Chromed conveyor rollers and shafts (no rust)
- Automatic tunnel cool down with shut off
- Sealed bearings on drive and idler shafts
- Chamber size 18" W x 8" H x 28" L
- Quietest tunnel on the market
- Heats up to 300° F in less than 10 minutes
- Thermal overload protection on all motors
- Locking casters with leveling screws
- Anti-jam safety features on conveyor
- Easily adjustable crank handle allows for tunnel height adjustment
- Available Options: Tunnel height of 12" opening available (Ask us about the PP1808-28 SS)
Combo Specifications:
- Seal Dimensions (L x W): 16" x 22"
- Max Film Width: 20"
- Tunnel Opening (L x W x H): 28" x 18" x 8"
- Machine Dimensions (L x W x H): 103" x 32" x 62"
- Shipping Weight: 950 lbs.
- One Power Source:
- 220Volt, Single Phase, 45 Amp
Demo Video
Specifications
Manufacturer Part #: | PP 1622MKA Combo |
Dimensions (LxWxH): | 103.00in. x 32.00in. x 62.00in. |
Specifications:
|
