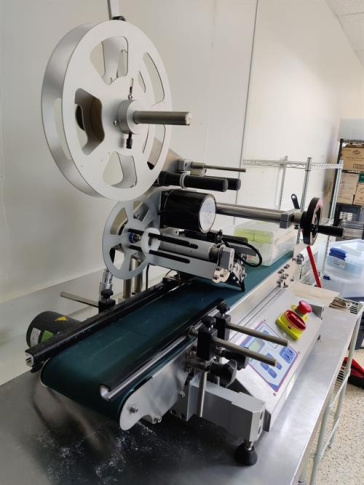

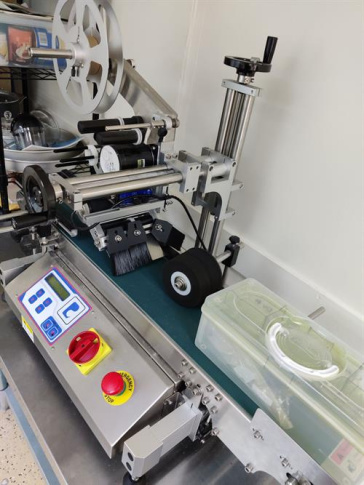

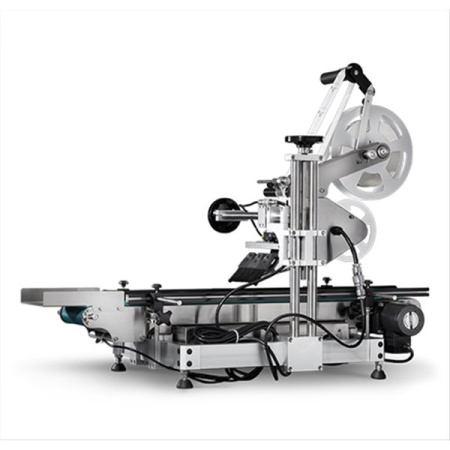

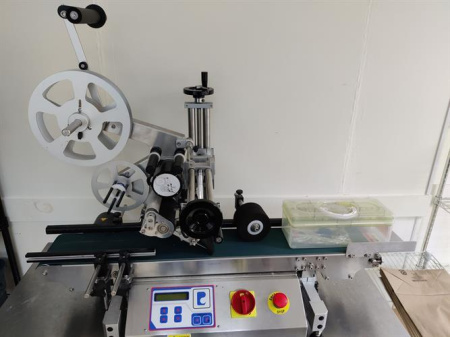

ELF-20 Table-Top Labeler - Table Top Labeling Machine

What is a Top Labeling Machine?

A Top Labeling Machine applies labels to the top surface of each item which passes through the machine on a conveyor system. This Top Labeling Machine peels and applies labels onto each item with ease. Stop picking labels by hand! Apply labels easily and quickly with one of our label dispensers or applicators. Will Save You Money and Time!

Pack Leader boasts a broad selection of quality, versatile labeling machines designed to suit the specific labeling requirements of companies across the globe. Pack Leader's most portable offerings comprise the company's Elf Series. This selection of Table Top Labeling Machines includes the Elf-20 and Elf-50 models both exceptional machines that offer the high efficiency and mobility desired for smaller production runs.

With both machines capable of production speeds of up to 60 containers per minute, the two Elf models are distinguished primarily by location of the label heads. The Elf-20 Top Labeler is used for product applications where a top label is necessary, while the Elf-50 Wrap-Around Labeler is best-suited for round product applications.

Portable Design The design of both Elf Series models enables them to be moved around easily and set up exactly where needed. Either model can be positioned on a table top or bench, or moved in-line for automatic or semi-automatic applications giving you a convenience not found with heavier, more elaborate labeling machines.

Simple to Use The built-in operating instructions and trouble-shooting guide offered on the operator interface, as well as hand wheels that provide for simple adjustments, enable quick set-up and easy changeover.

Easy to Maintain In strict compliance with Good Manufacturing Practices (GMP) standards, the Elf Series machines are made of 304 stainless steel and anodized aluminum, and are carefully treated to guard against the effects of harsher environments. Additionally, their simplistic design enables quick fixes and easy adjustments. Given this durability and easy maintenance, the Elf Series affords you a solid choice in labeling machine longevity.

FEATURES

• Labeling Counter: Keeps track of the quantity of products processed by the machine.
• Pre-Set Counter: A quantity can be preset for a production batch and the machine will automatically stop as the quantity is attained.
• Label Position Set: Used to delay label application and adjust label position by simply touching the control panel.
• Five Memory Slots: For fast and easy label set up
• Printer Interface: Future installation is accomodated by the printer ports which provides timing controls for flexibility and clear quality prints.
• Stepper Motors are used to provide fast and accurate labeling.
• Modular Design Concepts for fast and simple mainenance. Flexible enough to handle production schedule changes with simple adjustments for rapid changeover. EXTRA VALUE!!!

SPECIFICATIONS

• Power Source :....AC 110V/ 220V 50Hz/60Hz 1 Phase
• Power Consumption :....400 VA
• Driver :....2 Phase Stepper Motor >LI> Max Conveyor Speed....52.5/minute
• Dispensing Speed :....52.5/minute
• Max Container Width.....6 inches
• Conveyor Width :....6 inches
• Product Height :....Max. 4.75 inches (180mm)
• Max Label Dimensions....4.75 x 11.8 inches
• Label Reel Inner :....1-4/5" (46mm) or 3" (76mm)
• Label Reel Outer :....10 inches (250mm)
• Space Between Label :.... 1/10" (3mm) Min.
• Air Pressure :....4 Bars (For Optional Equipment)
• Machine Dimensions (LxWxH) :....43 x 21 x 32 Inches (110x550x820mm)
