Tray Sealer |PP-YTV-200-1 Tabletop Manual Tray Sealers with MAP 200 × 140 mm (7.8 x 5.5 Inch)
Description
Tray Sealer | PP-YTV-200-1 Tabletop Manual Tray Sealers with MAP 200 × 140 mm (7.8 x 5.5 Inch)

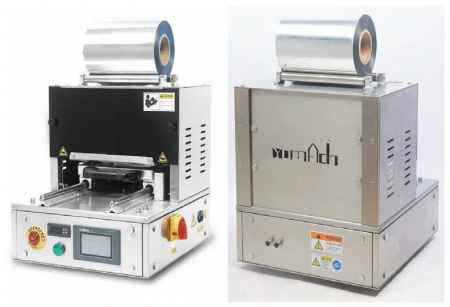

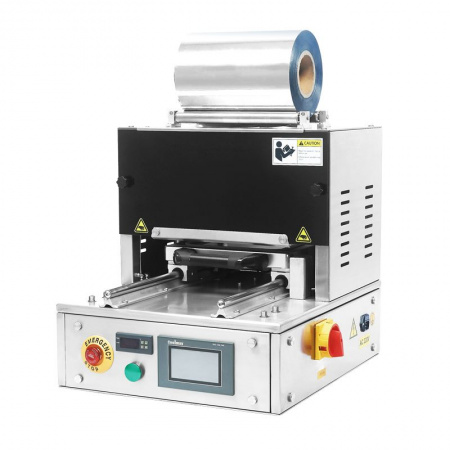

The Preferred Pack Model PP-YTV is a Tabletop Manually Operated “Shuttle Style” Tray Sealer with “MAP” Modified Atmosphere Packaging-Gas Flush for extending the shelf life of your product ! This unit will seal lidding film to the tray and “Die Cut Excess Film Around the Tray” for a nice clean retail appearance. The operator simple removes the excess die cut film from around the package. This is a fast and easy way to seal low to medium quantities of trays at an affordable price.
This manual shuttle style tray sealing machine is designed as a tabletop unit or it can be placed on a bench and used for sealing lidding film to trays. The operator simply loads the tray or trays into the tooling cavity and by grabbing the handle moves the tooling die forward into the sealing area where the lidding film will be sealed to the tray and the gas flush is injected into the tray prior to sealing or container for an attractive look and the film will be die cut around the tray via the top tooling cutting die. The temperature and sealing time can be set depending on the type of tray and material thickness being used. The film is then automatically positioned for the next package. Easy changeover of tooling allows operator to run different trays sizes easily.
Machine comes with (1) set of tooling included in price
Trays and Lidding Film quoted upon request
Features
- Heat sealing
- Filling GAS
- Replaceable tray
- Need Air compressor
- Packed in wooden cases
Ideal for:
- Ready meals
- Frozen foods
- Bulk packaging of food items
- Retail packaging
Standard Features Include:
- #304 Stainless Steel Frame and Aluminum Construction;
- Uses upper tooling to die cut around tray for clean retail appreance;
- Digital temp controls;
- Max tray depth is 80mm (3.14 Inch)
- Suitable for PP, PE, PET, APET or CPET Trays;
- Adjustable sealing timer;
- Warm up time of only 5 minutes;
- Fast cycle time of 10 seconds when using gas flush or 8-10 PPM on single tray;
- Automatic film indexing;
- Includes one set of tooling with machine;
- Consistent leak proof seals;
- Low Maintenance;
- Fast and easy tooling changeover for different tray sizes in 5 minutes
SPECIFICATIONS
- Max Tray Size: 1 Cavity 200 × 140 mm (7.8 x 5.5 Inch)
- Max Tray Height : 3.14 Inch (80 mm)
- Cycle Time : 10 Second
- Voltage :AC 220V / AC 110V
- Machine Dimension : 18 x 21 x 23 Inch (460 × 530 × 580 mm)
- Weight : 100 kgs (220 lbs)
- Max Flim Dim : 11.8 Inch (300 mm)
- Air Pressure : 0.6 - 0.8 Mpa (1 CFM @ 80 PSI)
- Total power : 1.0 kw
- Touch Scree : WEINVIEW 4.3
- PLC : MITSUBISHI FX2N
- Penumatic Accessories : Airtac
- Main Body Metrial : 304 Stainless Steel
- Mold Metrial : 6061 Aluminum
- Electrical Accessories : Schneider
- Thermostat : MH-PT 100
