Plastic Flowmaster Hoppers

New Closed Top Design

Tapered top eliminates "pooling" of liquids on the top of the hopper.

New interlocking corner stacking lugs facilitate safe and stable stacking of hoppers.

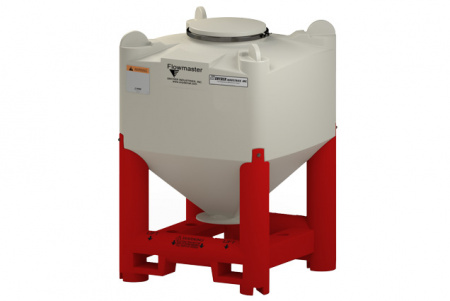

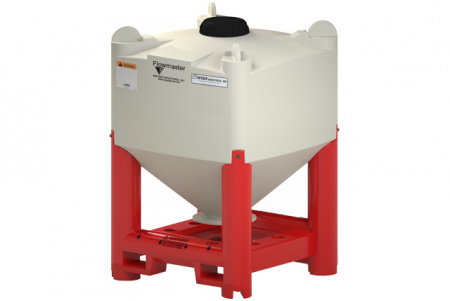

Closed Top Design

Plastic Flowmaster Hoppers

Patent: US 7,475,796 B2
All Flowmaster hoppers are molded with an extra thick 0.500” heavy duty wall for a longer lasting, more durable container. Molded from High Density Polyethylene (HDPE), the hoppers are corrosion and chemical resistant with superior impact strength and puncture resistance. One piece hopper construction and seamless interior improves material flow characteristics. Flowmaster Plastic hopper bins are available in a variety of design configurations to meet specific dry handling requirements. Choose from Closed Top or Open Top volume capacities of 25 Cu. Ft. to 80 Cu. Ft. and hopper slopes of either 45° or 60° degree angles.



Standard Sizes

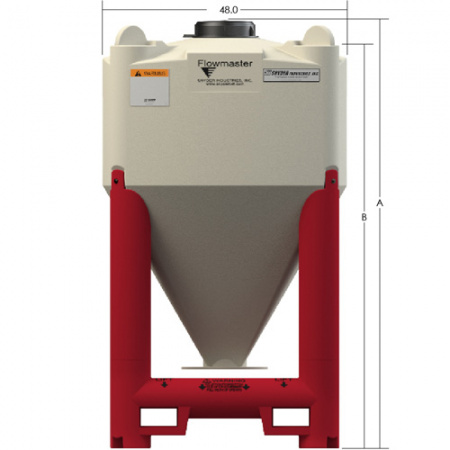

• 45 Degree hopper angle - 25, 40, 50, 60, and 80 cubic feet.45º Hopper Angle Drawing
• 60 Degree hopper angle - 30, 48, 58 and 68 cubic feet. 60º Hopper Angle Drawing
• New improved Sanitary Base with two (2) way fork entry and anti-teeter fork pockets.
• Optional original base offers four (4) fork entry and two (2) way pallet jacks.

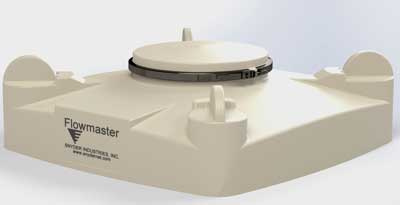

Closed Top Lid Options

• 12 Inch threaded cap and EPDM Gasket (solid or vented).
• 18 Inch Internal threaded cap (solid or vented).
• 22 Inch Sanitary Drum style lid with 304 S/S clamp ring.
• Available with top stacking/alignment lugs or recessed pockets for secure, stable stacking.

Standard Discharge Options

• 4 Inch Slide gate or butterfly valve.
• 8 Inch Slide gate, butterfly valve or Iris valve.
• 12 Inch Slide gate, butterfly valve or Iris valve.
• Other sizes available upon special request.

Optional Top Lift Features

• Standard lift
• Industrial - (available with all lids).
• Sanitary (only available with 22 Inch Sanitary Lid).
• Heavy Duty Lift
• Industrial
• Optional extension legs can be permanently molded and cut to desired elevation clearance up to 48 Inch.
• Proprietary company and product information can be permanently embossed within the container wall.
• Seismic Tie Down Capabilities.
• Proprietary Company and Product Information can be permanently embossed within the container wall.
• UN Certified IBC design models available upon special request and volume.
• Other custom sizes available with sufficient volume.
• Complete line of ancillary equipment & accessories.

Note: All dimensions and capacities are approximate
For use with dry materials up to 100 lbs/ft³



Note: All dimensions and capacities are approximate
For use with dry materials up to 100 lbs/ft³

Stationary and Portable Hopper Bins - Superior Physical Properties, Optimum Performance

Advantages VS. Metal (Stainless, Mild and Aluminum)

• Reduced maintenance costs, corrosion resistance.
• Chemical and corrosion resistance.
• Lower tare weights reduce freight costs.
• Lower acquisition investment.

Advantages VS. Flexible Bulk Bags (FIBCs)

• More cost effective, reusable containers eliminates disposal cost.
• Superior impact strength, puncture resistant.
• More versatile, and safer material handling options.
• 4 way hand pallet jack and fork lift access.
• Stable and secure stacking.
• Reduced labor cost in filling and discharge operations.
• Broader Chemical resistance.
• Better weatherability.
• Seamless, smoother interior surface; improved flow characteristics.
