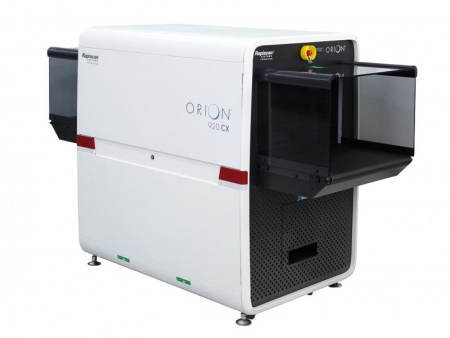

Rapiscan ORION 920CX High Performance X-Ray System

The 920CX is a High Performance 620 mm by 420 mm tunnel checkpoint screening system with best-in-class image quality and excellent threat detection alert capabilities.

  • Industry Best Penetration, Wire and Spatial Resolution
  • Explosives and Narcotics Detection
  • Low Density Image Enhancement
  • Matrixing, Networking and Remote Viewing
  • KEY FEATURES AND OPTIONS

    • Explosive threats, narcotics & density alerts
    • Spectrum 4
    • 17 Image processing functions
    • SINERGY low density enhancement
    • Dual Mode Z-effective
    • CrystalClear
    • Automatic, Enhanced Image Archiving
    • E.U. Approved Threat Image Projection
    • Remote Status Monitoring
    • Remote Archive Review
    • Multi?System Alarm Resolution Network
    • Multiplexing and Matrixing
    • Tray Return System Compatible
    • 13 Languages
    • 64-bit Operating System

    SPECTRUM 4-COLOR IMAGING

    920CX can present images to the operator in the Classic 4-color and the new proprietary Spectrum 4- color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

    DUAL MODE Z

    This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Zeffective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Zeffective number of a selected pixel.

    EXPLOSIVES AND NARCOTICS DETECTION

    Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

    EUROPEAN AVIATION COMPLIANCE

    920CX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.

    logo

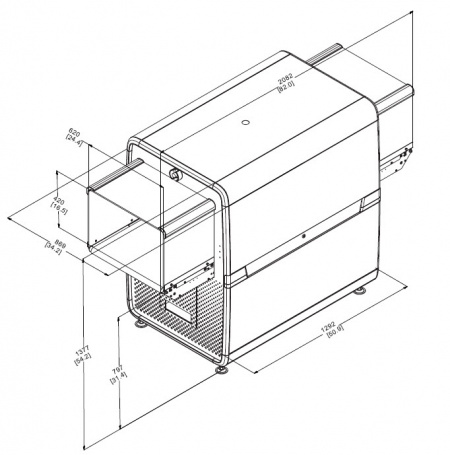

    PHYSICAL SPECIFICATIONS

    • DIMENSIONS : L 2,082 mm (82.0 in) W 869 mm (34.2 in) H 1,377 mm (54.2 in)
    • TUNNEL SIZE : W 620 mm (24.4 in) H 420 mm (16.5 in)
    • CONVEYOR HEIGHT : 797 mm (31.4 in.)
    • WEIGHT (NET) : 537 Kg (1184 lbs)

    logo

    ENVIRONMENT & POWER

    • STORAGE TEMPERATURE : 20°C to 50°C
    • OPERATING TEMPERATURE : 0°C to 40°C
    • RELATIVE HUMIDITY : 5 to 95% non-condensing
    • SYSTEM POWER : 100/110/120/200/208/220/230/240 VAC ±10%

    PERFORMANCE

    • CONVEYOR SPEED1 : 0.20 m/sec (39.4 ft/min)
    • CONVEYOR LOAD1 : 165 Kg (364 lbs)
    • STEEL PENETRATION : 44 mm typical, 42 mm standard
    • WIRE PENETRATION : 44 AWG typical, 42 AWG standard

    X-RAY GENERATOR

    • ANODE VOLTAGE : 160kV
    • ORIENTATION Diagonally : Upward

    GOVERNMENT REGULATORY

    • Regulation (EC) No. 300/2008 Compliant
    • Regulation (EU) No. 185/2010 Compliant
    • EU Commissions Decision C(2010) 774 Compliant
    • U.K Department for Transport (DfT) TIP Approved

    Demo Video




    If you have any questions or concerns, contact a customer service representative today.
    Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


    Specifications

    Manufacturer Part #: 920CX
    Dimensions (LxWxH): 82.00in. x 34.00in. x 54.00in.

    PHYSICAL SPECIFICATIONS

    • DIMENSIONS : L 2,082 mm (82.0 in) W 869 mm (34.2 in) H 1,377 mm (54.2 in)
    • TUNNEL SIZE : W 620 mm (24.4 in) H 420 mm (16.5 in)
    • CONVEYOR HEIGHT : 797 mm (31.4 in.)
    • WEIGHT (NET) : 537 Kg (1184 lbs)

    ENVIRONMENT & POWER

    • STORAGE TEMPERATURE : 20°C to 50°C
    • OPERATING TEMPERATURE : 0°C to 40°C
    • RELATIVE HUMIDITY : 5 to 95% non-condensing
    • SYSTEM POWER : 100/110/120/200/208/220/230/240 VAC ±10%

    PERFORMANCE

    • CONVEYOR SPEED1 : 0.20 m/sec (39.4 ft/min)
    • CONVEYOR LOAD1 : 165 Kg (364 lbs)
    • STEEL PENETRATION : 44 mm typical, 42 mm standard
    • WIRE PENETRATION : 44 AWG typical, 42 AWG standard

    X-RAY GENERATOR

    • ANODE VOLTAGE : 160kV
    • ORIENTATION Diagonally : Upward

    GOVERNMENT REGULATORY

    • Regulation (EC) No. 300/2008 Compliant
    • Regulation (EU) No. 185/2010 Compliant
    • EU Commissions Decision C(2010) 774 Compliant
    • U.K Department for Transport (DfT) TIP Approved
