Description

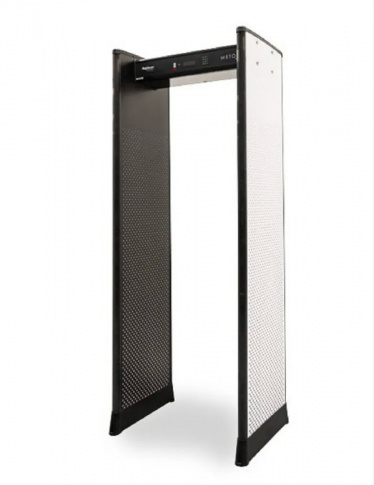

Rapiscan ORION Metor 900M Walk Through Multi Zone Door Frame Metal Detector

Rapiscan® Systems Orion® Metor® 900M is an advanced walkthrough metal detector with enhanced capabilities for the detection of metal contraband in all security applications.

EXCEPTIONAL NON-THREAT ITEM DISCRIMINATION

FULLY WEATHERPROOF AS STANDARD

EXCELLENT OPERATIONAL RELIABILITY

TWO-DIMENSIONAL MULTI-COLOR LOCATION DISPLAY

FULLY RE-DESIGNED

Building on our many years of experience and knowledge the Metor 900M has been completely re-designed from the software and the user interface to the electronics and detection methods, to create our most advanced system yet.

NETWORKING & COMMUNICATION CAPABILITIES

The Metor 900M is fully compatible with the Rapiscan Systems MetorNet 10, an ethernet-based Security Management System which means you can manage all your networked Metor walk-through metal detectors from one single location, or remotely to your Internet-enabled device. The Metor 900M supports communication with various interfacing protocols including Fast Ethernet, USB, Bluetooth, Wi-Fi, Infrared, RS 232, Digital I/O, etc.

INTEGRATED LOCATION DISPLAY & PACING LIGHTS

With 60 localization segments, the system can indicate items located left, center, and right. With multi-colored LEDs and 4 multi-zone display bars programmable as location indication or pacing lights, the Metor 900M helps operators quickly and easily identify the location of any items.

POWERFUL DETECTION CAPABILITIES

The Metor 900M has been designed to be compliant with the most stringent security standards today. These standards require uncompromised detection of metallic threat items regardless of composition. Metor 900M comes with built-in security programs based on the requirements of international standards and various applications.

WEATHERPROOF AS STANDARD

Metor 900M is fully weatherproof as standard. The unit has been tested to comply with IP65 requirements. All materials used in the product are water resistant making it suitable for both indoor and outdoor applications.

OBJECT CLASSIFICATION

Metor 900M object class cation technology allows an advanced capability to identify items more accurately compared to ferrous/non-ferrous information only. With exact electromagnetic characteristics on the material and shape of the item, the Metor 900M is able to quickly distinguish between threats and innocuous objects. This will reduce the need for a manual pat down and save time and money.

CONTACTLESS NFC SMART CARDS

The Metor 900M comes with intelligent new features such as smart card support via NFC (Near Field communication). With the smart card, an operator can make parameter changes and select security levels quickly and reliably using a simple contactless system.

EXCELLENT OPERATIONAL RELIABILITY

Metor 900M has been developed to operate reliably in various demanding environments. Its exceptional immunity guarantees secure operation in case of surrounding electrical equipment or multiple metal detectors in close proximity.

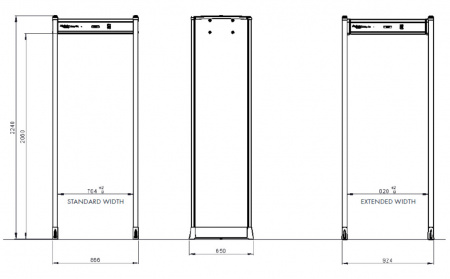

PHYSICAL SPECIFICATION

DIMENSIONS(INTERIOR)
W 760 mm (30 in)
H 2,060 mm (81 in)

DIMENSIONS (EXTERIOR)
W 870 mm (34 in)
H 2,240 mm (88 in)
D 650 mm (26 in)

WEIGHT :60 kg (133 lbs)

POWER SPECIFICATIONS

POWER SUPPLY (MAINS): 90 - 264 VAC / 47 - 63 Hz 12 VDC (optional battery)

LINE VOLTAGE (AUTOMATIC ADJUSTMENT)
The Metor 900M has the ability to adjust automatically to variations in line voltage from 90 to 264 VAC or 12 VDC without operator intervention or system performance degradation.

OPERATING ENVIRONMENT

AMBIENT OPERATING TEMPERATURE : -20°C to 60°C / -40°F to 140°F
HUMIDITY : 0 - 100%
ENVIRONMENTAL PROTECTION :IP65 (IEC 60529)

OPERATION

ALARMS : Audible/visible alarm. Alphanumeric display and Zone Display. Relay contact for remote alarm (SPDT).

SENSITIVITY : Overall sensitivity setting with 200 steps. Eight individually adjustable detection zones with respect to overall sensitivity.

INTERFERENCE SUPPRESSION :Digital filtering by the signal processor. Several operating frequencies suppress local electrical noise.

NETWORK CONNECTIONS : MetorNet Remote Security Monitoring System compatible.

CALIBRATION: Pre-configured security programs are directly selectable to meet the requirements of international standards and various applications.

CONFORMITY

SAFETY STANDARDS:The Metor 900M meets the magnetic field limits set by international standards for human safety.

CE COMPLIANT:Conforms to the applicable international standards for electrical safety and EMC.
