Description

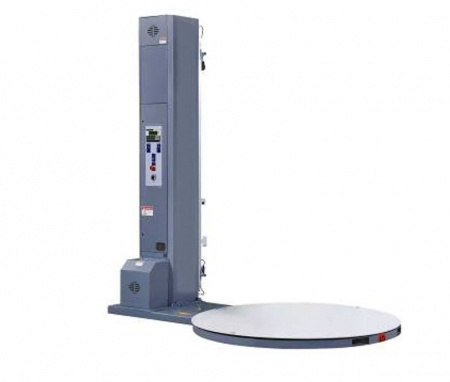

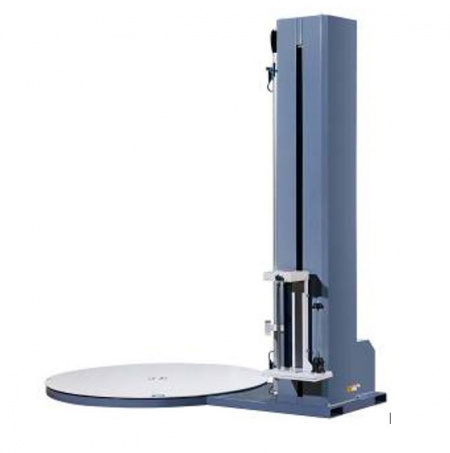

Pallet Stretch Wrapper Preferred Pack PP-4505-1HP High Profile- (No Ramp) Semi-Automatic Pallet Stretch Wrapping Machine

FEATURES

• Keypad on Main Screen, easily adjusts top and bottom wrap counts etc.

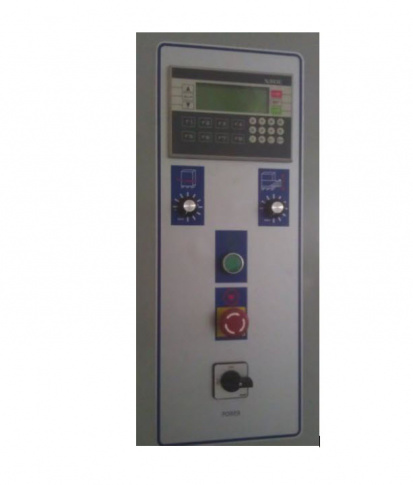

• Independent dial controls on front control panel for “Tension Control”, “Turntable Speed” and “Carriage Speed”
3
• 4,400 Lbs load capacity
• Max load size 48 x 48 x 83 Inch high
• 59” Diameter Turntable Top with 12 Load bearing roller supports
• Soft start and stop turntable for unstable loads
• Variable Speed Turntable to 1-12 RPM
• Variable Speed Film Carriage
• Operating temperature from 0-32 Degrees C (32-104 Degrees F)
• Hook on turntable to easily attach stretch film to load.
• Turntable and Film Carriage Speed Control -Emergency safety stop switch
• “Forklift Portable” from the front and rear-Easy to move around
• Exceeds OHSA safety standards
• Safety Sensor under film carriage-If sensor sees anything underneath film carriage the film carriage will automatically stop
• Heavy duty chain driven turntable with ½ HP drive motor.
• Electro-Mechanical brake stretch system with “Easy Thread Design” film yields of up to 150%.
• Inside roll diameter is 75 mm (3 Inch)
• Photo eye will automatically seek height of pallet.
• Home Position – Turntable always returns to original position.
• Mast pivots upward for easy set up and is secured by 6 bolts
• 110 volt power cord and plug.
• AC motor invertors.

SPECIFICATIONS

• Electrical : 110 Volt, 10 amp
• Warranty : 1 year limited warranty on parts from date of delivery
• Actual Weight : 500 kg (1,100 Lbs)
• Shipping Weight : 650 kg (1,430 lbs.)
• Crated Dimensions : 116 L x 65 W x 37 H Inch
• Actual Dimensions : 96 L x 59 W x 86 H Inch
