Description

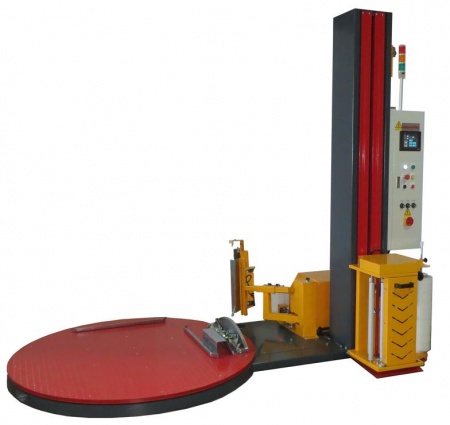

Preferred Pack PP-1621AL Automatic Pallet Stretch Wrapper Fully Automatic Cut, Clamp and Swipe

Features

• 300% Power pre-stretch
• 4,400lb load capacity
• Photo Eye
• “Easy Thread Design”
• New digital control panel with all standard features

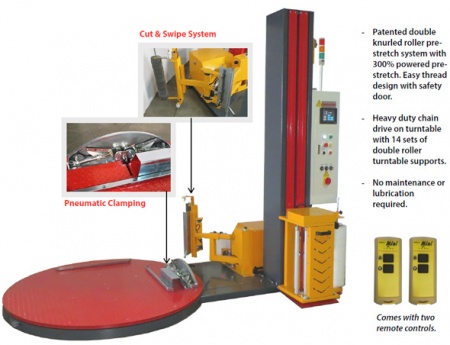

• Fully Automatic - Cut, Clamp and Swipe

Film Saver!

• With a 300% powered pre-stretch system, a standard 20”x 5,000 ft machine film roll will apply 20,000 ft of film to the load providing a tremendous film yield and a quick ROI through film cost savings.

Time Saver!

• Complete wrap cycle takes 1 minute from start to finish
• Fully Automatic with remote control
• Improve productivity by keeping the operator on the forklift
• Capable of wrapping 30-40 loads per hour
• Forklift portable (front or rear)
• No scheduled preventative maintenance
• Save two minutes of forklift driver labor per load

Control Panel

• OMRON 6” Color Touch-Screen
• HMI Mitsubishi PLC Control
• On/Off Switch
• Top Wrap Count
• Bottom Wrap Count
• Start/Stop
• Manual/Automatic
• Film Tension Control
• Turntable Speed
• Film Carriage Speed
• Emergency Stop Switch

SPECIFICATIONS

• Production Rate: 30-40 Loads Per Hour
• Power Requirements: 115 Volts, 1 Phase, 15 Amp
• Air Required: 1 CFM @ 60 psi
• Maximum Load Size: 50 L x 50 W x 85 H INCH
• Maximum Load: 4,400 lbs.
• Turntable: 65inch diameter - 3/8inch Diamond Plate
• Turntable Drive: 1 HP AC variable speed 0-15 rpm
• Turntable Drive Method: Heavy Duty Chain ANSI #60
• Turntable Support: Heavy Duty Delrin Roller Assembly
• Film Delivery System: Patented double knurled roller with “Easy Thread Design” to stretch film 300%
• Machine Dimensions: 113 L x 81 W x 96 H INCH
• Carriage Elevator: Variable speed 1/2 HP- drive belt
• Controls: Mitsubishi PLC control
• Photo Eye: Will seek height of pallet load
• Forklift Portable: Yes
• Home Position: Turntable will automatically return to home position
• C.E. Approval: Exceeds OSHA Safety Standards
• Warranty: 3 Year Limited Warranty
• Film Capacity: All Commercial 20” Wide Stretch Film
• Shipping Weight:2,000 lbs.

Optional Features

• 71” diameter turntable
• Tower extension to 95” or 105”
• Loading ramp
• Weight scale packages
• Additional remote controls
• Alarm sensor for film clamp protection
