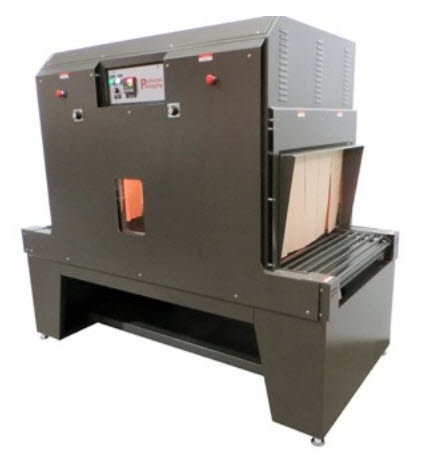

SHRINKWRAP TUNNEL | Preferred Pack PP3620-96 High Capacity Production 96 Inch Shrinkwrap Tunnel

The PP3620-96 Tunnel is a great general purpose Shrink Tunnel that can be used for a wide variety of applications. Can be used with shrink bands, neck bands, full body sleeves, used with shrink film, used as drying or curing tunnel etc.

Preferred Pack PP3620-96 High capacity production shrink tunnel with variable air velocity,re-circulating air system, digital temperature control, Heavy Duty 5/8” diameter live roller rod conveyor, AC Variable speed drive 0 to 100 FPM, Automatic cool down with shut off. Dual chamber features Dual 1HP Blower Motor. Dual heater banks, Dual variable air velocity controls, live rollers, and a 60” long chamber.

Standard Features Include:

• Fully Re-Circulating Air Chamber
• Live Roller Rod Conveyor
• Digital Temperature Control 0-400°
• Adjustable Air Velocity Control
• State-of-the-Art AC Variable Speed Drive 0-75 FPM
• Chromed Conveyor Rollers and Shaft (No Rust)
• Automatic Tunnel Cool Down with Shut Off
• 1HP Blower Motor
• Sealed Bearings on Drive and Idler Shafts
• Chamber Size 96 L X 36 W X 20 H Inch
• Quietest Tunnel on the Market
• Heats up to 300° F in less than 15 minutes
• Thermal Overload Protection on All Motors
• Locking Casters with Leveling Screws
• Anti-Jam Safety Features on Conveyor
• 15 KW Heater Bank

SPECIFICATIONS

• Chamber Size :96 L X 36 W X 20 H Inch
• Blower Motor :Dual 1HP
• Heater Bank : Dual 15kW
• AV Controls : Dual
• Volts : 220
• Amps : 70
• Phase : 3
• Warranty:2 years on parts
• Dimensions:85 L x 44 W x 72 H (inches)
• Shipping Dimensions:89 L x 48 W x 81 H (inches)
• Weight : 1650 (lbs)
• Shipping Weight : 1850 (lbs)

Available Options:

• 16, 20, 24 or 28 Inch Tunnel Height
• Close Roller Spacing 1/2 Inch Gap
• Teflon Mesh Belt
• Stainless Steel Metal Mesh Belt
