Postmark LP1170 Low Profile Full Color Inkjet Printer and ASB Stand with Bridge and Cables

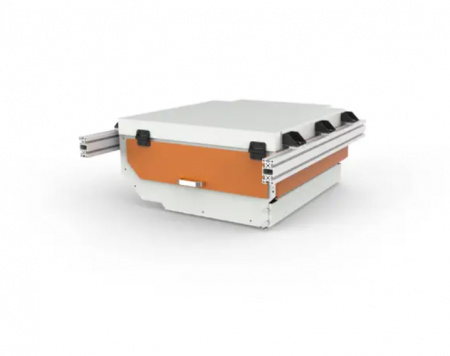

The AP1170 is an all in one solution for the 1170 printhead. With it’s integrated friction feeder, adjustable receiving tray, and vacuum conveyor you can have an “All Purpose” solution for printing. The AP1170 also features a cantilevered design allowing for larger media to be fed under the printhead when the 20” feed width isn’t quite enough. Simply remove the feeder (no tools required and feed on larger media such as boxes.

Versatility : Prints on a wide range of porous media types

Permanence : HP pigment ink provides durability in fade, scratch, and water resistance

Photo quality : The four-color ink system produces long-lasting, brilliant colors

Proven reliability : HP’s worldwide recognition for product quality, reliability, and service

Ease-of-use : Simple, quick replacement minimizes downtime

Economical output : Efficient ink delivery system provides a low cost-per-print advantage

High quality of up to 1200x1200 DPI

Speeds of up to 98 fpm. This is equivalent to 6800 #10 envelopes per hour (or 9,000 per hour if the envelopes are turned for landscape mode

WIDE COVERAGE : 11.7” of seamless coverage, so enough for a 10x13 envelope and other larger products

FULL BLEEDS : Our APS transport conveyor has a bleed channel for the excess ink, allowing us to deliver full bleeds

Simple Software Interface : The 1170 uses a standard Windows Driver. We can print directly from a PDF or from the software program of your choice. If you need color matching software, it is available as an option.

Low Cost of Consumables : The ink costs are MUCH lower than color toner based printers, and competitive with other Full Color inkjet Systems.

Minimal Cleaning Cycles Required : Many CMYK Inkjet printers require a cleaning cycle every 50-200 pieces. This is because of lines in the image, caused by ink drying in the nozzles. Our ink formulation requires minimal cleaning cycles. Can you imagine having to wait for a 2 minute cleaning cycle every 50 documents? This is not an issue with the 1170.

Color Fast Water Proof Ink : The 1170 CMYK Ink is Pigment based, as opposed to dye or water-based inks. This is important, because pigmented inks WILL NOT degrade or dissolve when it comes in contact with water. If your mail is being delivered in the rain, the color images will not wash off your envelope. More importantly, promotional items, such as drink coasters or paper bags, etc. will not be damaged by water. Pigmented ink also dries faster than water or dye inks

Printhead Specifications

Printhead : HP PageWide technology TIJ4 printhead, replaceable as part of BnB
Print Swath : 297 mm (11.7 in)
Nozzle Count : 59136 (4224 x 14)
Resolution : 1200 nozzles per inch, per color
Speed : Up to 18ips - 27m/min - 98ft/min
Drop Volume : 10 pl K, 8.5 pl CMY
Ink cartridge type : Individual ink supply
HP ink type : Pigmented aqueous ink
Ink fill (ml) : Approximately 498 black, 237 cyan, 233 magenta, 225 yellow

Software Specifications

Connection : Ethernet
Driver : Windows (static data only)
Rip Options : Maestro (Xitron Navigator)
User Interface : 10.1” Touchscreen and Driver/Rip
Touch Interface Features : Electronic Height Adjust, Cost Calculator Cleaning Cycles, Relay output

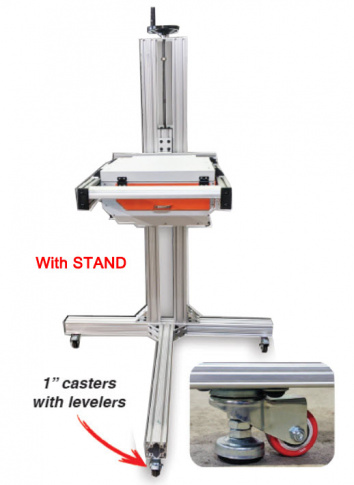

ASB - Adjustable Stand Bridge

Stand dimensions : 59 H x 36 W x 32 D

Weight : 82 lbs

Print Samples Actual Size

DEMO VIDEO
