Description

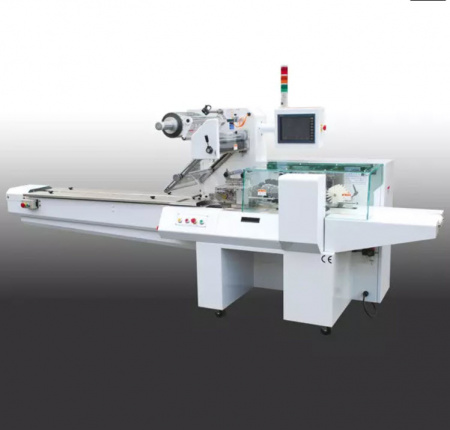

Flow Wrapping Machine - S-5647 Servo Flow Wrapper Machine

Flow Packing Wrapping Machine for
• Cakes • Masks • Biscuits & Snacks • Candy & Confectionery • Refrigerated & Frozen Food • Fresh • Shrink Packaging • Wet Wipes / Tissue • Printing Items • Detergents • Masks • Pharmaceutical & Medical • Hardware & Tools • Instant Noodles, and • Miscellaneous

The S-5647 Flow Wrapping Machine makes a three-sealing pillow pack, with rotary motion end sealing for high-speed running, and can be equipped with different level control systems to suit various packaging requirements.

The servo-driven flow wrapper can pack a wide range of regularly shaped, solid items from both food and non-food industries. A range of automation solutions for continuous feeding is also available.

With 100 sets of parameter memories, the flow wrapper is easy to operate with low maintenance costs.

DEMO VIDEO










FEATURES

  • 3-axis servo motor drive units for in-feed, center sealing, and end sealing.
  • Japanese Yaskawa Motion Controller
  • Shinko P.I.D. temperature control modular.
  • 1 set of rotary end sealing jaw.
  • 1 set of auto-centering reel holders.
  • 10.4" colorful touch screen with 100 sets of products data memories.
  • Print mark registration with Japanese Panasonic sensor as a standard function.
  • Home button makes the packaging data change-over easy.
  • Overload protection for end sealer with auto disengage function.
  • Top brush belt makes the items transfer smoothly at high running speed.
  • Dancing roller and motorized film feeding rollers keep the film tension stable.

SPECIFICATIONS

  • Capacity (PPM): 30 ~ 230
  • Bag Length (mm): 70 ~ 350 (2.75 ~ 13.77 Inches)
  • Max. Film Width (mm): 470 (18.50 Inches)
  • Max. Product Width (mm): 190 (7.48 Inches)
  • Max. Product Height (mm): 30 / 60 / 90 mm (1.18 / 2.36 / 3.54 Inches) with jaws Dia. in 88 / 120 / 160 mm (3.46 / 4.72 / 6.29 Inches)
  • Electricity: 5.5 Kw - AC-220 Volt - 3 phase + Ground

logo

Other Flow Wrapping Machine with Different Specifications - Servo Flow Wrapper Machine

Flow Wrapping Machine - S-5647 Servo Flow Wrapper Machine

Flow Wrapping Machine - S-5561 Servo Flow Wrapper Machine

NOTE:The Max. product height is according to the applications & product range.
A higher product is available as requested.

Optional Accessory

  • Date printing device.
  • Extended in-feed length.
  • End seal gusset device.
  • Online labeling device.
  • Additional film reel holder.
  • Auto feeding system.
  • No Product No Bag function.
  • Misplaced products detection function.
  • Gas flushing device.
  • End seal euro hole / round hole punch.
  • Stainless steel machine construction finishing.

Packaging Applications

Specifications

Manufacturer Part #: S-5647

SPECIFICATIONS

  • Capacity (PPM): 30 ~ 230
  • Bag Length (mm): 70 ~ 350 (2.75 ~ 13.77 Inches)
  • Max. Film Width (mm): 470 (18.50 Inches)
  • Max. Product Width (mm): 190 (7.48 Inches)
  • Max. Product Height (mm): 30 / 60 / 90 mm (1.18 / 2.36 / 3.54 Inches) with jaws Dia. in 88 / 120 / 160 mm (3.46 / 4.72 / 6.29 Inches)
  • Electricity: 5.5 Kw - AC-220 Volt - 3 phase + Ground
