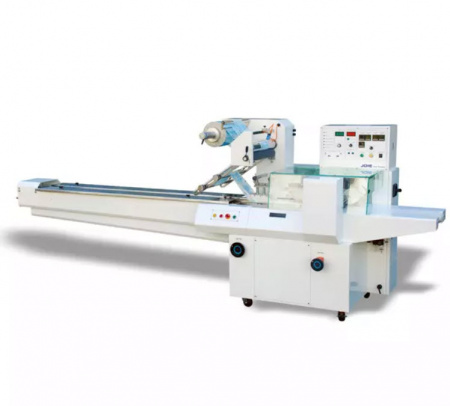

Flow Wrapper - M-5247 Horizontal Flow Packing Machine

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

Flow Wrapper - M-5247 Horizontal Flow Packing Machine

Flow Packing Wrapping Machine for
• Cakes • Masks • Biscuits & Snacks • Candy & Confectionery • Refrigerated & Frozen Food • Fresh • Shrink Packaging • Wet Wipes / Tissue • Printing Items • Detergents • Masks • Pharmaceutical & Medical • Hardware & Tools • Instant Noodles, and • Miscellaneous

The M-5247 Flow Wrapping Machine makes a three-sealing pillow pack, with rotary motion end sealing for high-speed running, and can be equipped with different level control systems to suit various packaging requirements.

A basic-level horizontal flow pack machine (HFFS) can pack various industrial products, achieves productivity goals, and meets budget requirements.

An ideal solution for both food and non-food packaging.

DEMO VIDEO



FEATURES

  • Powder coating machine frame.
  • PLC program control.
  • 4 independent OMRON P.I.D. temperature controllers.
  • Print mark registration with Japanese Panasonic photocell as a standard function.
  • Overload protection for end sealer with auto disengage function.
  • Protection device for in-feed pushers makes the in-feed reset easily.
  • Top brush belt makes the product transfer smoothly at high running speed.
  • Dancing roller and motorized film feeding rollers keep the film tension stable.
  • Home reset button makes the film change-over quick and easy.
  • Special bag length auto-tuning function makes the print mark registration reliable.

SPECIFICATIONS

  • Capacity (PPM): 30 ~ 230
  • Bag Length (mm): 70 ~ 350 mm (2.75 ~ 13.77 Inches)
  • Max. Film Width (mm): 470 mm (18.50 Inches)
  • Max. Product Width (mm): 190 mm (7.48 Inches)
  • Max. Product Height (mm): 30 / 60 / 90 mm (1.18 / 2.36 / 3.54 Inches)with jaws Dia. in 88 / 120/ 160 mm (3.46 / 4.72 / 6.29 Inches)
  • Electricity: 3.7 Kw - AC-220 Volt - 1 phase + Ground

logo

Other Flow Wrappers with Different Specifications - Horizontal Flow Packing Machine

Flow Wrapper - M-5235 Horizontal Flow Packing Machine

Flow Wrapper - M-5261 Horizontal Flow Packing Machine

NOTE: The Max. product height is according to the applications & product range.
A higher product is available as requested.

Optional Accessory

  • Date printer.
  • End seal gusset device.
  • Gas flushing device.
  • End seal euro hole / round hole punch.
  • Adjustable bag former.
  • Extended in-feed length.

Packaging Applications

Specifications

Manufacturer Part #: M-5247

SPECIFICATIONS

  • Capacity (PPM): 30 ~ 230
  • Bag Length (mm): 70 ~ 350 mm (2.75 ~ 13.77 Inches)
  • Max. Film Width (mm): 470 mm (18.50 Inches)
  • Max. Product Width (mm): 190 mm (7.48 Inches)
  • Max. Product Height (mm): 30 / 60 / 90 mm (1.18 / 2.36 / 3.54 Inches)with jaws Dia. in 88 / 120/ 160 mm (3.46 / 4.72 / 6.29 Inches)
  • Electricity: 3.7 Kw - AC-220 Volt - 1 phase + Ground
