Description

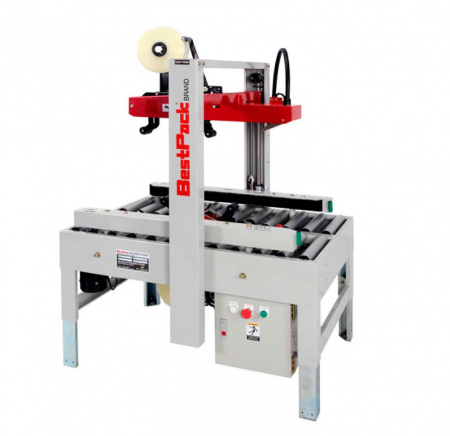

BestPack RS22-2 Semi-Automatic Random Adjustable Case Sealer, Side Belt Drive, 2 Inch Tape Head

The BestPack RS Series is a Semi-Automatic Random Tape Carton Sealer built for speed and rugged dependability. Using side belt drives, the RS easily seals a wide range of random carton weights and sizes, with masts that allow for an extra 4 Inch of carton height on the upper assembly. Able to effectively seal very light to very heavy cartons, BestPack’s RS sealer is a workhorse and the most flexible unit in our random carton sealer product line.

Our RS line incorporates our exclusive 2 Inch or 3 Inch pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food-grade 304 stainless steel for 21 CFR 110 compliance.

The semi-automatic random case sealer adjusts automatically for the height and weight of the cartons. Using 2 Inch wide tape, it seals the top and bottom of cases ranging in length from 6 Inch and up, the width of 4.5-20 Inch and height of 4-21 Inch

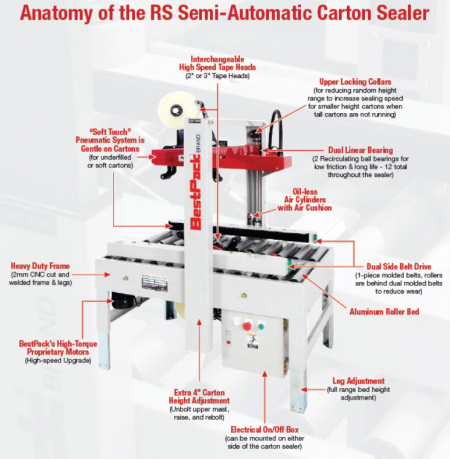

FEATURES

• Heavy duty 2mm CNC cut and welded frame including upper welded legs
• Self-centering belt drive system with 1 piece molded belts and V-belt guide with rollers behind the belts to reduce wear and tear on the belts, stress on the motors and increase belt and motor life
• Exclusive pop-out high-speed tape heads with patented tab adjustment and noise reduction stabilizing arm
• Heavy duty SMC oil-less cushioned air cylinders
• Quality UL-approved electrical parts
• Adjustable bed height
• Electrical on/off box can be mounted on either side of the sealer
• Optional height range of 8-25" if requested
• This product has a limited warranty of 1 year

DEMO VIDEO

SPECIFICATIONS

• SPEED : Up to 15 Cartons/min.
• POWER REQUIREMENTS : 110 Volts 60 Hz
• AIR REQUIREMENTS : 55-80 PSI, 5 SCFM
• SHIPPING WEIGHT : 410 lbs
• MACHINE DIMENSIONS : 42.9 x 34.8 x 71.8 Inches 1090 x 884 x 1824 mm
• CARTON RANGE : (6.0 - U In) x (4.25 - 20.0 In) x (4.0 - 21.0 In) (152 -U mm) x (108 - 508 mm) x (102 - 533 mm)
• TRIP CURRENT (A) : 2 in
• FLA : 34-13/16 in
• CONVEYOR HEIGHT ADJUSTMENT : (20.5 - 30.0 Inches) / (521 - 762 mm)
• PHASE : 4 in
• SCCR (KA) : 21 in
• MAX CURRENT (A) : 21 in
• POWER (W) : 20-1/2" - 30"

POPULAR RS MODELS

RS22-2 - 2 Inches Tape Head
RS22-3 - 3 Inches Tape Head
RS23-2 - 2 Inches Tape Head
RS23-3 - 3 Inches Tape Head
RS32-2 - 2 Inches Tape Head
RS32-3 - 3 Inches Tape Head
RS33-3 - 3 Inches Tape Head



LOCKING CASTERS
The heavy-duty locking casters allow the carton sealer quick and easy mobility to other locations.

SPARE TAPE HEAD
Order a spare tape head with your machine to minimize downtime. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

LONG INFEED/EXIT CONVEYOR W/ L-BRACKET STABILIZER
This 39.5 Inches long conveyor is a great work platform and allows for the staging of cartons on the infeed and the exit.

SHORT INFEED/EXIT CONVEYOR W/ L-BRACKET STABILIZER
This 19.75 Inches short conveyor is a great work platform and allows for the staging of cartons on the infeed and the exit.

FOOD GRADE 304 STAINLESS STEEL
This machine is available in 304 stainless steel which is food grade safe for food applications.

SPARE PARTS KIT
Minimize downtime with BestPack's Spare Parts Kit.

CARTON SEALING TAPE
Put high-quality tape on your BestPack Carton Sealer. Make sure to order machine-length rolls for your new carton sealer.

HIGH SPEED MOTOR
High-Speed Motor Upgrade (up to 125 ft.)
