ERC - 530RT Industrial heavy-duty Hydraulic Program-Control Paper Cutting Machine (530 mm /20.8 Inch)

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

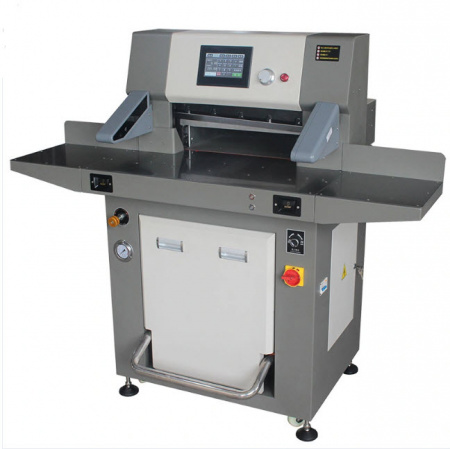

ERC - 530RT Industrial heavy-duty Hydraulic Program-Control Paper Cutting Machine (530 mm /20.8 Inch)


  • Classification : Single-blade Cutter
  • Driven Type : Hydraulic
  • Type : Living Paper Cutting Machine
  • Blade Material : Stainless Steel
  • Computerized : Computerized

  • Product Description

    ERC - 530RT Industrial heavy-duty Hydraulic Program-Control Paper Cutting Machine

    CHARACTERISTICS

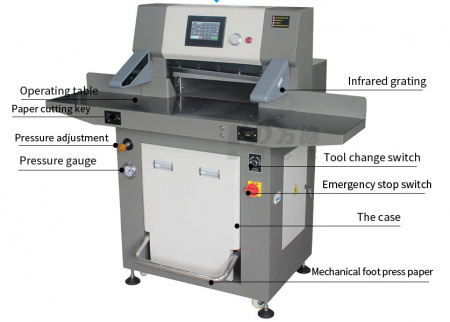

      1. Mechanical pedal for pressing paper: The device is easy and safe for aligning the paper which corresponds to the CE standards.
      2. The paper pusher platform can be folded. And a side table can be chosen.
      3. Electronic handwheel fine-tuning: push paper size precision fine-tuning, precision is higher
      4. High-quality touch screen: 7-inch screen, easy to operate with digital control, program control, and segment mode(only for H series) Big LCD (only for R series)
      5. 100 programs memory cut and Self-check function, malfunction code display function, count function

    logo

    SPECIFICATIONS

    • Max. Cutting Size: 530 mm
    • Min. Cutting Size: 30 mm
    • Cutting Thickness: 100 mm
    • Cutting Precision: ± 0.2 mm
    • Pressing Paper Mode: Hydraulic +Mechanical Pedal
    • Cutting Paper Mode: Hydraulic
    • Pushing Page Mode: AUTOMATIC
    • Program: Yes
    • Display: LCD
    • Power: 220V/110V± 10% 50Hz (60Hz) 2.5 kw
    • Machine Weight: 400 kgs
    • Gross Weight: 450 kgs
    • Machine Size: 1280* 1010* 1370 mm



    If you have any questions or concerns, contact a customer service representative today.
    Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


    Specifications

    Manufacturer Part #: ERC - 530RT

    SPECIFICATIONS

    • Max. Cutting Size: 530 mm
    • Min. Cutting Size: 30 mm
    • Cutting Thickness: 100 mm
    • Cutting Precision: ± 0.2 mm
    • Pressing Paper Mode: Hydraulic +Mechanical Pedal
    • Cutting Paper Mode: Hydraulic
    • Pushing Page Mode: AUTOMATIC
    • Program: Yes
    • Display: LCD
    • Power: 220V/110V± 10% 50Hz (60Hz) 2.5 kw
    • Machine Weight: 400 kgs
    • Gross Weight: 450 kgs
    • Machine Size: 1280* 1010* 1370 mm
