Description

ERC - 720R Hydraulic Touch Screen Paper Cutting Machine (720 mm /28.3 Inch)

Classification : Single-blade Cutter

Driven Type : Hydraulic

Type : Living Paper Cutting Machine

Blade Material : Stainless Steel

Computerized : Computerized

Product Description

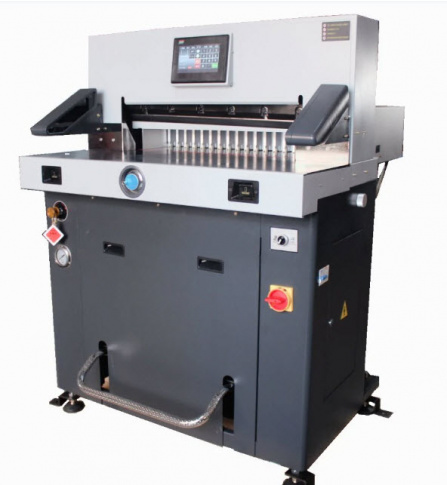

ERC - 720R Hydraulic Touch Screen Paper Cutting Machine

Characteristics
1. Double lead screws and ball screws for pushing paper
Double lead screws and ball screws for pushing paper platform without slot design, to make the pushing force more equal and durable, It matches up the servo motor control design, cutting precision is better, and increasing the speed of pushing paper.

2. Swing arm design of blade carrier patented technology
The design makes the roller slot not easy to wear and tear and can adjust the gap of the blade carrier to ensure cutting accuracy.

3. Inclined blade-cutting patented technology
Any thick paper can be cut smoothly and easily with an inclined blade design.

4. Leak-Proof design
Make the cylinder in the state of seal and is no leak.

5. Double hydraulic with a strong power system
Taiwan motor with strong power, imported hydraulic components for ensuring quality, with an external knob to adjust the pressure of the paper clamp.

6. 7 Inch large LCD touchscreen
The cutting depth and size calibration can be adjusted by setting the program, 100 series programs, and 96 cuts for each series program. Humanization design makes the operation easier and more convenient.

7. PLC control board design

(1) It is easy to use and simple to program
(2)It has anti-interference ability and reliability.
(3) and easy to replace

8. Plate with Aluminum hard anodizing process
The new aluminum panels are light smoothed and wearable.

9. Mechanical pedal
Pressure paper proofread position, easy and convenient.

SPECIFICATIONS

• Max. Cutting Size: 720 mm /28.3 inch
• Max. Cutting Thickness : 80 mm /3.1 inch
• Min Cutting Size: 30 mm/1.1 inch
• Cutting Precision: ± 0.2 mm
• Pressing Paper Mode: Hydraulic +Mechanical Pedal
• Pushing Paper: Programmable
• Display: Touch Screen
• Program: Yes
• Power: 220v/110v±10% 50Hz(60Hz) 2.8 kw
• Machine Weight: 520 kgs
• Machine Size: 1550* 1200* 1460 mm

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
