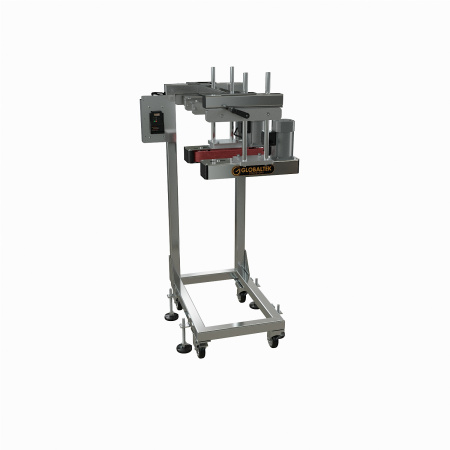

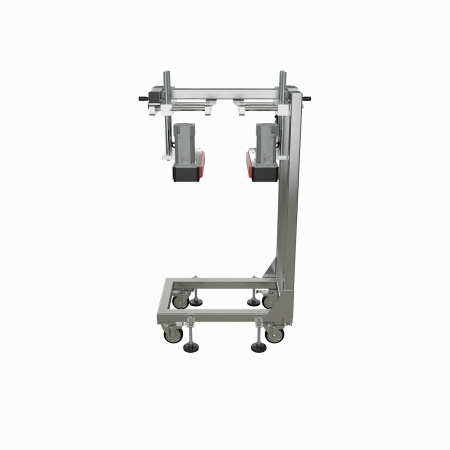

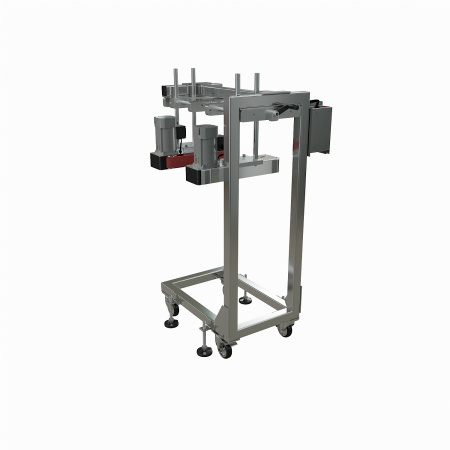

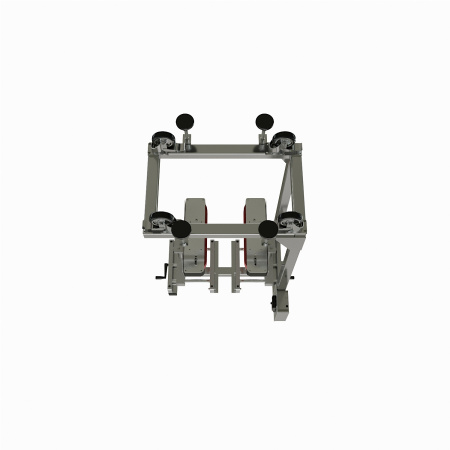

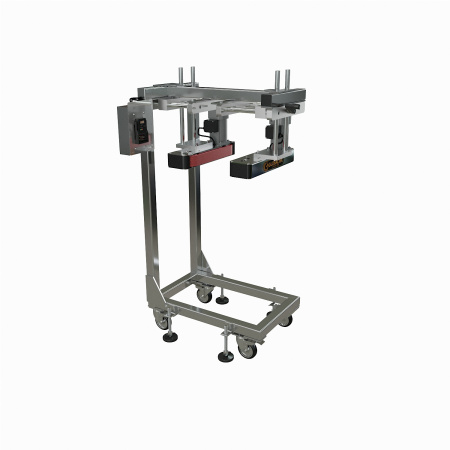

GLOBALTEK TRA-12FM 12 Inch Long Frame-Mounted Bottomless Transfer Conveyor

GLOBALTEK™ 12” Long Frame-Mounted Bottomless Transfer Conveyor is easily placed horizontally on your production line to effectively transfer filled or empty containers from one standard conveyor to another, as well as de-packing, spacing, label inspection, and bottom coding. This machine has variable speed control. The Gripper Belts are independently adjustable using an easy-adjust handle wheel, accommodating containers up to 12" in diameter. This is a simple and effective method to conjoin multiple conveyors together.

The GLOBALTEK™ Bottomless Conveyor is equipped with Bison Gear Motors with fans. This item has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. The Bottomless conveyor is designed to access the bottom side of the container for coding expiration dates, lot numbers, and many more. The Gripper Belts are independently adjustable using an easy-adjust handle wheel, accommodating containers up to 8" in diameter.

MAIN FEATURES:

• MADE IN USA WITH 100% UL CERTIFIED COMPONENTS
• STAINLESS STEEL AND DURO ALUMINUM FRAME
• UP TO 80 FT/MIN
• PINCH POINT PROTECTION
• LS VARIABLE FREQUENCY DRIVE: INPUT VOLTAGE:115 PH / OUTPUT VOLTAGE 230 VAC/3PH

SPECIFICATIONS

• AC BROTHER GEARMOTORS : 1/10 HP, 90 RPM, 74 IN/LBS, 230VAC/3PH/60HZ
• ELECTRICAL REQUIREMENT : 115 VOLTS / 1 PH / 60 HZ
• ADJUSTABLE BELT OPENING : 0 Inch TO 12 Inch (0 to 305 mm)
• BELT SIZE : 12 L X 2 H Inch (305 L x 51 H mm)
• BELT HEIGHT ADJUSTMENT : 6 Inch (152.4 mm)

OPTIONAL FEATURES

• PRINT HEAD BRACKET
• BOTTLE SLIDING PLATE

WARRANTY

• 12 MONTHS (LIMITED WARRANTY)
