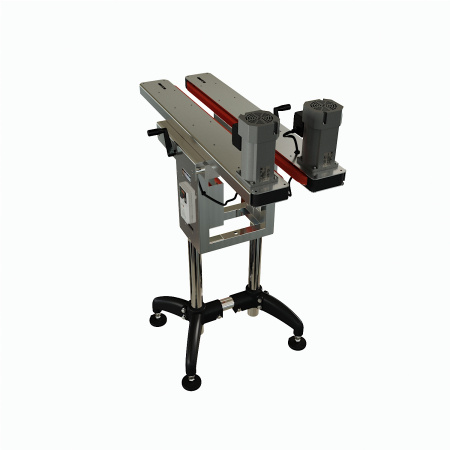

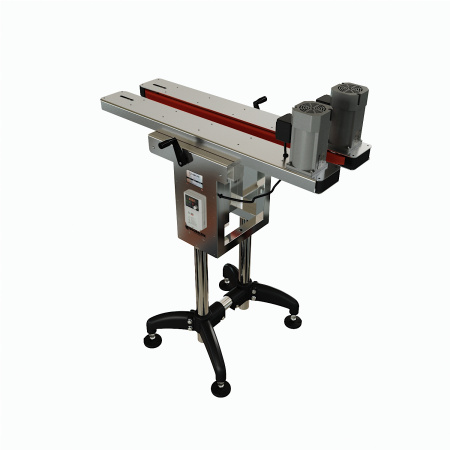

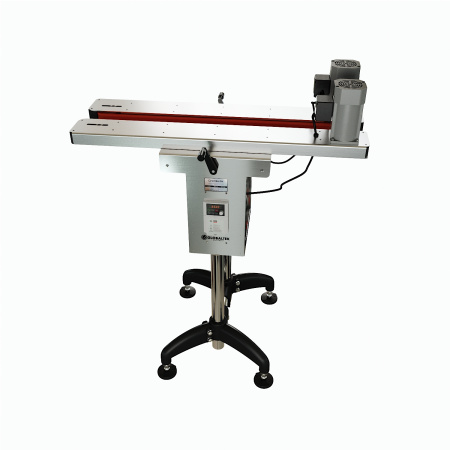

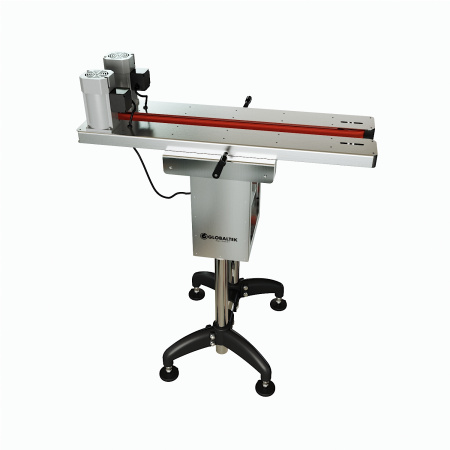

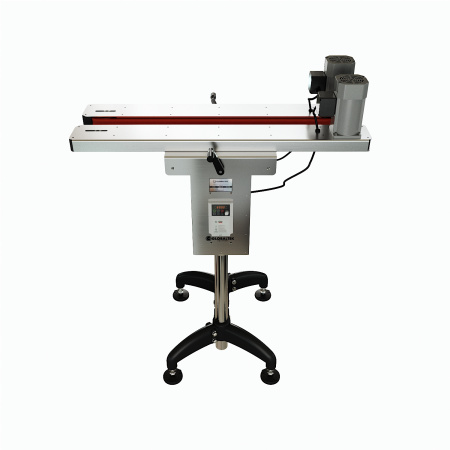

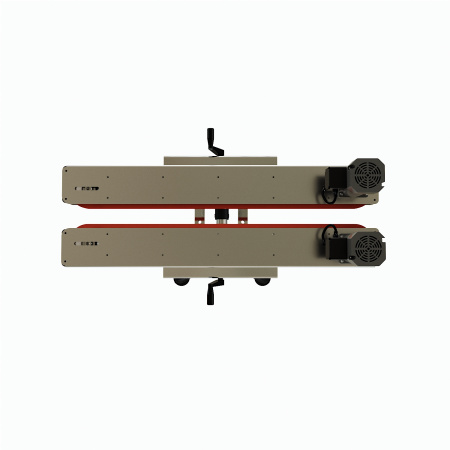

GLOBALTEK TRA-37S Bottomless Side Belt Transfer Conveyor

The GLOBALTEK™ Bottomless Conveyor is equipped with AC Gear Motors. This item has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. The Bottomless conveyor is designed to access the bottom side of the container for coding expiration dates, lot numbers, and many more. The Gripper Belts are independently adjustable using an easy-adjust handle wheel, accommodating containers up to 8" in diameter.

The GLOBALTEK™ Bottomless Conveyor is equipped with Bison Gear Motors with fans. This item has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. The Bottomless conveyor is designed to access the bottom side of the container for coding expiration dates, lot numbers, and many more. The Gripper Belts are independently adjustable using an easy-adjust handle wheel, accommodating containers up to 8" in diameter.

MAIN FEATURES:

• MADE IN USA WITH 100% UL CERTIFIED COMPONENTS
• STAINLESS STEEL FRAME
• UP TO 100 FT/MIN
• PINCH POINT PROTECTION
• LS VARIABLE FRECUENCY DRIVE: INPUT VOLTAGE:115 PH / OUTPUT VOLTAGE 230 VAC/3PH

SPECIFICATIONS

• AC BROTHER GEARMOTORS : 1/10 HP, 90 RPM, 74 IN-LBS , 230VAC THREE PHASE MOTOR
• MACHINE ELECTRICAL REQUIREMENTS : 115 VOLTS / 1 PH / 60 HZ
• ADJUSTABLE BELT OPENING : 0 Inch TO 7 3/4 Inch (0 to 184 mm)
• BELT SIZE : 36 L X 1 H Inch (914.4 L x 25.4 H mm)
• FLOOR TO BELT HEIGHT : 36 Inch TO 42 Inch (SET AT 37 Inch )(914.4 L x 1066.8 H mm) (SET AT 37 Inch )
• OVERALL MACHINE DIMENSIONS : 38 L X 24 ½ W X 44 H Inch (965 L X 622 W X 1117.6 H mm)

OPTIONAL FEATURES (ADD-ONS)

• PRINT HEAD BRACKET
• BOTTLE SLIDING PLATE
• LOCKING CASTERS

WARRANTY

• 12 MONTHS (LIMITED WARRANTY)
