Description

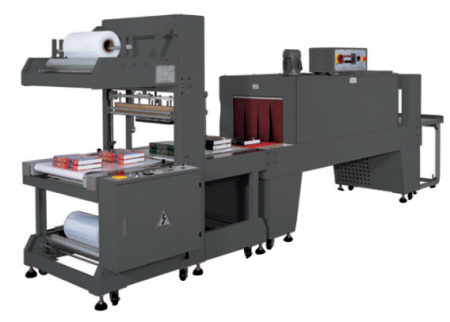

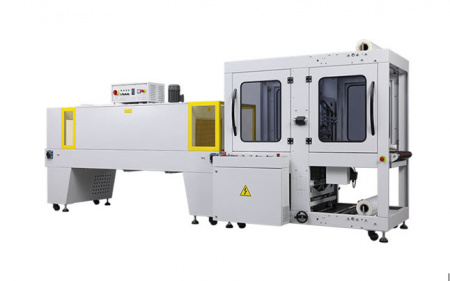

Preferred Pack Model PP-6030Z Automatic In-Line Poly Bundler/Sleeve Wrapper with Model PP-99070M Shrink Tunnel. This system is a Fully Automatic In-Line machine with a seal size of 27.5” Wide x 27.5” H tunnel opening

This system uses 2 single wound rolls of polyethylene film, one located on top of the machine and one located at the bottom of the machine, and these two sheets are sealed together at the center to make one sheet of film that the package will travel through. As the product travels down the infeed conveyor a photo eye is activated by the product and the film is automatically advanced past the seal bar, once the product has passed through the seal area, the seal bar is activated and comes down to seal the film around the product. At this point the package is sealed in poly film with the ends open, now the package is picked up by the tunnel conveyor belt and automatically transferred into the shrink tunnel where the film will be heated up and will then shrink tightly around the package somewhat closing or reducing the size of the open ends, if enough film is used you can sometimes completely enclose the package ends with compression rollers. Production speeds of 8 to 20 PPM can be obtained depending on package length, film thickness Etc.

Standard Features of the PP-6030Z Automatic In-Line Poly Bundler/Sleeve Wrapper:

• 27.5” Wide Hot Knife Seal Bar with Safety Switches.
• Maximum width film roll is 28”
• 30” Power Belted infeed conveyor with photo eye activation to transport product into and through the sealing area
• 20” powered discharge conveyor to power the product into the shrink tunnel
• Independent Seal timer
• VFD Drive for conveyor speed control
• Easy to use front control panel with digital temperature controls
• Dual film rack (one film roll on top and one on bottom) with independent motor drives
• Film threading diagrams
• Pneumatic product hold down to stabilize product on the discharge conveyor.
• Machine speeds of 8 to 20 PPM depending on product size and film gauge used.
• Digital seal bar temp control 0-400 Degrees F
• Working height of 33.5” (+-/ 2”)
• AC Variable speed motor inverters with PLC

Standard Features of the PP-99070M Tunnel Include:

• Tunnel size of 98” L x 39” W x 27.5”H
• Heavy duty high RPM, high air velocity blower motor.
• Heavy duty dead roller conveyor used to transport product through tunnel
• Cooling fans on the discharge end of the tunnel.
• Air velocity from all 4 sides for better shrink results
• Manufactured under GMP standards to exceed OHSA safety standards
• Will run any commercial grade polyethylene film
• Emergency stop switch on front control
• Side safety door interlock switches-if door is opened machine will automatically shut off
• Air regulator with water trap.
• Max Package size: Unlimited length x 20” W x 12” H

SPECIFICATIONS

• Electrical :220 Volt, 3 phase, 97 amps
• Power:37 KW (37,000 watts)
• Air:5 CFM @ 80 PSI
• Max Pkg Length :Unlimited
• PP-6030Z Dimensions:71.5” L x 52” W x 84” H
• PP-99070M Dimensions:128” L x 47” W x 77” H
• System Length:204” (17 Ft) total
• Weight:500 KG (1,100 lbs) PP-6030Z Poly Bundler / 840KG (1,850 lbs) PP-99070 Tunnel
