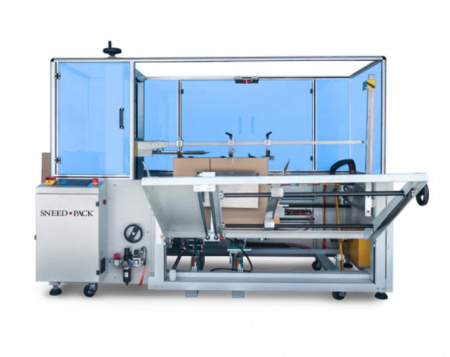

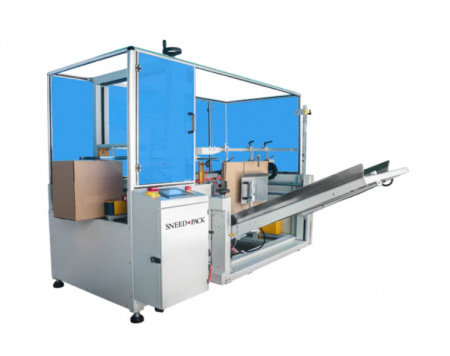

SNEED-PACK CE-50 CASE ERECTOR / BOX ERECTOR / CARTON ERECTOR

Our SNEED-PACK Carton Erectors open, form, and seal box bottoms within a matter of seconds. Why wouldn’t you switch to a system that can basically double, if not triple the number of boxes you can get per minute, all the while reducing the chance of error? The SNEED-PACK Box Erector is guaranteed to get those 90-degree angles your boxes require to keep their structural integrity. In addition, the only time you really need to dedicate any time to this machine, aside from when you’re loading it, is when the alarm goes off letting you know that you’re out of tape or that it broke. You don’t even have to worry about dealing with box jams because the machine comes with anti-jamming technology.

The SNEED Pack Case Erector is officially here to replace the manual labor needed to form packaging; not only can it double or triple the number of boxes formed in a minute, but it eliminates the waste of materials created by human error. This box erector is ideal for packaging lines that are in need of increasing production, maximizing precision, and cutting costs.

Product Video

Benefits

• Reduce labor cost with carton erector by eliminating the need for manual taping
• Reduce risk for employee injuries and downtime caused by repetitive motion
• Reduce material waste with a box-erecting machine
• Improve packing and case erecting efficiency
• Up to 2-3x faster than manual box erecting
• Reduce damage during transit and shipping
• Eliminate uneven tape lengths and positions

SPECIFICATIONS

• Speed : 0-10 cases / minute
• Box Storage Capacity: 80 to 100 Cases (Will vary based on case thickness)
• Minimum Box Size:
• 12.6in Length
• 7.87in Width
• 5.9in Height
• Maximum Box Size:
• 25.59in Length
• 19.68in Width
• 19.68in Height
• Tape Head Width: 2in (3in optional)
• Power: 110V 50/60HZ
• Power Supply: 240W
• Air Pressure: 6kg/cm2
• Air Consumption: 500NL / min
• Crate Dimension: 84.25in Length x 48.8in Width x 63in Height
• Crate Weight: 1,545lbs

Tape Options

Machine Length Tape

Crating & Freight

Crating is included in the listed price. We offer flat rate freight anywhere in the continental United States for $995 - there may be additional charges for destinations outside the continental United States.
A lift gate delivery is included when we ship crated items. The Flat Shipping Rate applies whether residential, commercial, school or military delivery.

Lead time

• Our SNEED-PACK Case Erectors are built to order - the current lead time is 3-4 months.

Compatible Case Coding Printers

Click Here for SNEED-JET Complete Case Coding Catalogue

SNEED-JET Freedom Series

• Utilizes maintenance-free, thermal inkjet technology
• Multiple models available for:
• One-inch printing on one side of the case or carton: SNEED-JET Freedom

• One-inch printing on both sides of the case or carton:SNEED-JET Freedom 22

• Two-inch printing on one side of the case or carton: SNEED-JET Freedom 21


SNEED-JET Infinity Inkjet Printer

• Utilizes maintenance-free, thermal inkjet technology
• Half-inch print head
• WiFi capable of programming with a PC or a smart device
• Network and control multiple printers from one location

SNEED-JET Titan Series

• Utilizes maintenance-free, thermal inkjet technology
• Half-inch print head
• Multiple models available

Related SNEED-PACK Equipment

SNEED-PACK Case Sealers

SNEED-PACK Conveyors

Warranty Information

• 12-Month Manufacturer's Warranty

SNEED-PACK CASE / BOX ERECTORS MODELS

SNEED-PACK CE-40 CASE ERECTOR / BOX ERECTOR / CARTON ERECTOR
SNEED-PACK CE-40HS CASE ERECTOR / BOX ERECTOR / CARTON ERECTOR
SNEED-PACK CE-30 SMALL BOX CASE ERECTOR
SNEED-PACK CE-30HS HIGH SPEED SMALL BOX CASE ERECTOR
SNEED-PACK AUTO FLAP FOLDING CS-50AF INCREASES PRODUCTIVITY
SNEED-PACK SMALL BOX AUTO FLAP FOLDING CASE SEALER
