Description

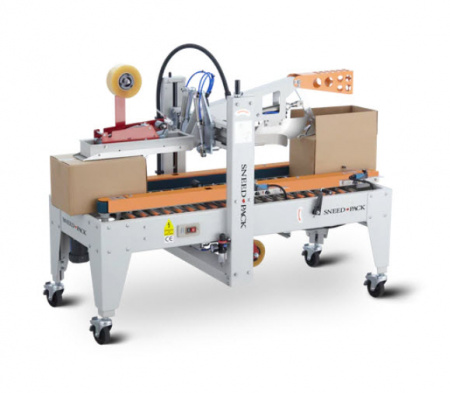

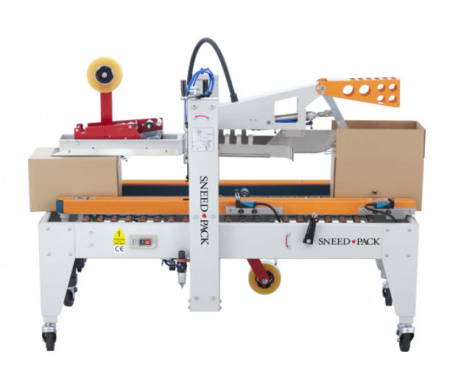

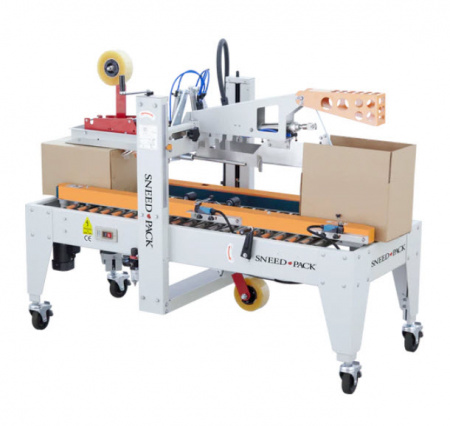

SNEED-PACK SMALL BOX AUTO FLAP FOLDING CASE SEALER

The SNEED-PACK Small Box, Auto-Flap Folding Case Sealer can produce up to 20 perfectly-sealed boxes per minute, which is four to five times more than what the average worker can produce. Thanks to the CS-30AF’s stainless steel rollers and AirTAC cylinder-controlled folding mechanisms, the sealing process runs smoothly and efficiently. The setup process is just as simple, all you have to do is use those cranks, located around the machine, to adjust for height and width, turn the machine on, and push boxes through.

Eliminating error-ridden packaging practices has never been easier, especially since our SNEED-PACK CS-30AF is taking the majority of manual labor out of the equation. There’s no need to manually fold the top flaps anymore, or seal the top and bottom of the case, our SNEED-PACK CS-30AF has it all covered; now all you have to do is load up your formed case and feed it through. Our SNEED-PACK CS-30AF is the piece of equipment you need to #KeepPackagingSimple.

Product Video

Benefits

• Reduce labor cost with case sealer by eliminating the need for manual taping
• Reduce risk for employee injuries and downtime caused by repetitive motion
• Reduce material waste with a case sealer
• Reduce tape usage by up to 30%
• Improve packing and case-taping efficiency
• Up to 6x faster than manual case sealing
• Case sealer can process in 5 minutes what takes 30 minutes manually
• ROI in less than one year when case sealing more than 250 boxes per day
• Potential to save thousands of dollars every year
• Reduce damage during transit and shipping
• Eliminate uneven tape lengths and positions

SPECIFICATIONS

• Speed : 20 cases/min
• Minimum Box Size : 5.1in Length x 3.15in Width x 3.5in Height
• Maximum Box Size: 11.02in Length x 7.87in Width x 7.87in Height
• Maximum Case Weight: 55lbs
• Motors: 2
• Tape Head Width: 2in (3in upgrade available)
• Power: 240W
• Power Supply: 110v 1 phase 50/60HZ
• Air Pressure: 6kg/cm2
• Air Consumption: 80NL/min
• Dimension: 61.8in Length x 31.5in Width x 49.21in Height
• Crate Weight: 485lbs
• Crate Dimensions: 66.93in Length x 35.43in Width x 53.15in Height
• 4 Casters (Included)

Tape Options

Machine Length Tape

Lead time

• Our SNEED-PACK Case Erectors are built to order - the current lead time is 3-4 months.

Compatible Case Coding Printers

Click Here for SNEED-JET Complete Case Coding Catalogue

SNEED-JET Freedom Series

• Utilizes maintenance-free, thermal inkjet technology
• Multiple models available for:
• One-inch printing on one side of the case or carton: SNEED-JET Freedom

• One-inch printing on both sides of the case or carton:SNEED-JET Freedom 22

• Two-inch printing on one side of the case or carton: SNEED-JET Freedom 21


SNEED-JET Infinity Inkjet Printer

• Utilizes maintenance-free, thermal inkjet technology
• Half-inch print head
• WiFi capable of programming with a PC or a smart device
• Network and control multiple printers from one location

Crating & Freight

Crating is included in the listed price. We offer flat rate freight anywhere in the continental United States for $699 - there may be additional charges for destinations outside the continental United States.
A lift gate delivery is included when we ship crated items. The Flat Shipping Rate applies whether residential, commercial, school or military delivery.

Warranty Information

• 12-Month Manufacturer's Warranty

SNEED-PACK CASE / BOX ERECTORS MODELS

SNEED-PACK CE-40 CASE ERECTOR / BOX ERECTOR / CARTON ERECTOR
SNEED-PACK CE-40HS CASE ERECTOR / BOX ERECTOR / CARTON ERECTOR
SNEED-PACK CE-50 CASE ERECTOR / BOX ERECTOR / CARTON ERECTOR
SNEED-PACK CE-30 SMALL BOX CASE ERECTOR
SNEED-PACK CE-30HS HIGH SPEED SMALL BOX CASE ERECTOR
SNEED-PACK AUTO FLAP FOLDING CS-50AF INCREASES PRODUCTIVITY
