D and K Expression 42 Plus (DK-EXP42+) Thermal/PSA Wide Format Laminator With PSA Rewind And Stand

The Expression (EXP) 42+ Laminator is designed for multi-purpose laminating and mounting of prints up to 41” wide. The EXP 42+ features heavy-duty silicone rollers with independent heat adjustment up to 300° F.

See Videos Below

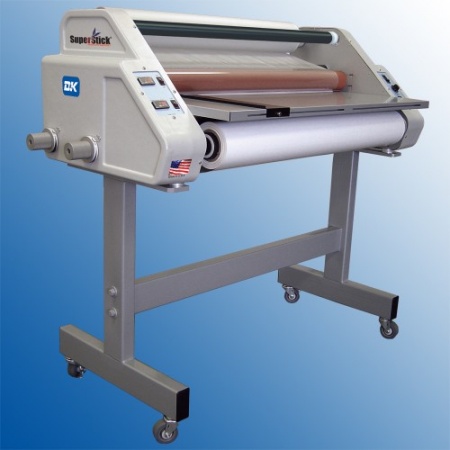

The Expression 42 Plus laminator is an industrial strength wide format laminating machine. It features variable speed, heated rollers, a stand, and an optional release liner rewind. It also features an adjustable roller pressure and accepts low-melt, thermal, and pressure-sensitive films. The Expression 42 Plus has both "ready" and "wait" lights to indicate when the laminator has reached its preset temperature. The Expression 42 Plus is a multipurpose laminator and perfect for wide-format digital output.

FEATURES

• Laminate/encapsulate and mount prints up to 41 Inch (1041 mm) wide
• Independent upper and lower temperature adjustments up to 300° F
• Fast set-up and easy operation.
• In-line slitter for trimming during lamination.
• Accommodates substrates up to 1/2 inch (12.7 mm) thick.
• Spring-Loaded adjustable pressure.
• Four high-capacity forced air cooling fans

Easy To Use

• Mounter, Laminator, Encapsulator (prints up to 41" wide.)
• Fast set-up and easy operation
• Roller lift for easy film loading
• In-line slitter for trimming during lamination (optional)
• Variable roller pressure
• Accepts low-meltm thermal and pressure-sensitive films
• Accomodates substrates up to 1/2" thick
• Accomodates rolls up to 8" in diameter
• Release liner rewind (optional)

Operator-Friendly

• “Ready” and “Wait” lights indicate when the laminator has reached preset temperatures
• Independent upper and lower electronic temperature controls with led display
• Spring-loaded adjustable pressure on laminating and pull rollers for smooth, even lamination
• Footswitch allows hands-free operation for guided materials during lamination (optional)
• Auto-grip shafts for easy loading of film

Heavy Duty

• Designed for mounting and laminating low-temp, thermal, and pressure-sensitive films
• Heated Rollers for a variety of films
• Heavy-Duty forward/reverse variable speed motor
• Sturdy feed-back table with adjustable feed guide
• Heavy-Duty top grade silicone rubber rollers

Cooling Fans

• Four high-capacity forced air cooling fans

SPECIFICATIONS

• Working Width: 41 Inch (1041 mm)
• Width: 57 Inch (1448 mm)
• Height: 19 1/4 Inch (484 mm)
• Depth (with feed tray): 27 1/2 Inch (699 mm)
• Net Weight (Minus Stand): 205 lbs
• Shipping Weight: 420 lbs
• Speed: 0 -10 fpm
• Maximum Temperature: 300°F
• Maximum Aperture: 1/2 Inch (12.7 mm)
• Roller Diameter: 3 Inch (76 mm)
• Air Requirements: N/A
• Electrical Requirements: 230V 30A
• Stand or Cart: (included)

Note:

• It will ship via truck. (We can quote freight but we need zip code)
• Lead time is 10-15 working days after receipt of your order.
• Warranty is 1 year part and labor, customer must keep the box in case it needs to come back for repair.
