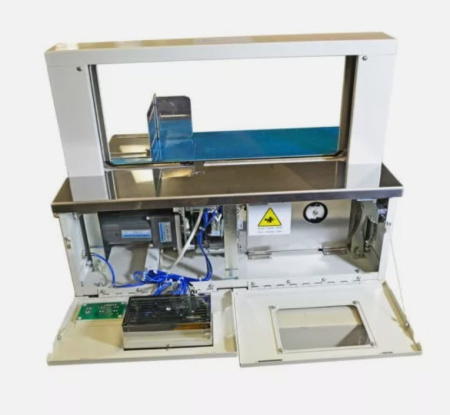

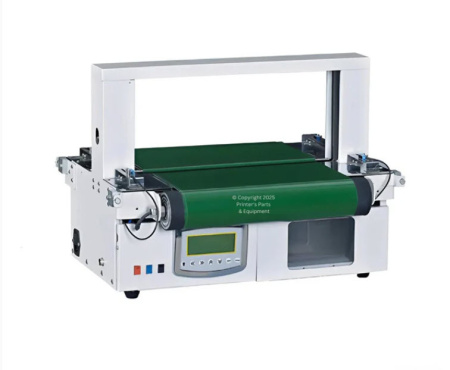

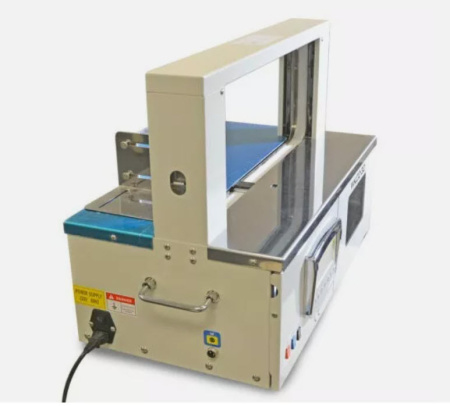

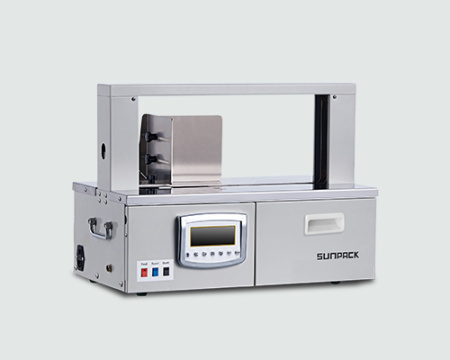

SUNPACK WK02-30A High Quality in-Line Automatic Belt Table Top Banding Machine

When making your purchase of this item, consider that we carry all parts for this SUNPACK Banding Machine and offer you support! We are in the USA, and you can easily reach us by CHAT, E-mail, Fax, and Telephone. See if our competitors can make those same statements. Most of them do not and cannot.

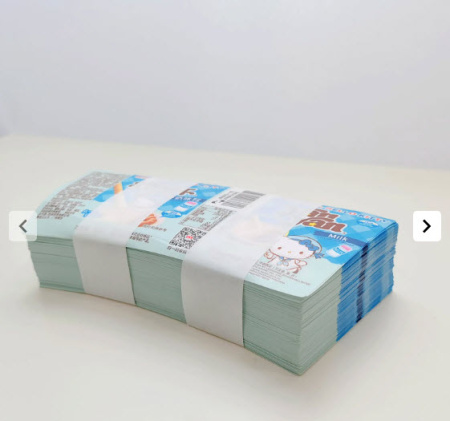

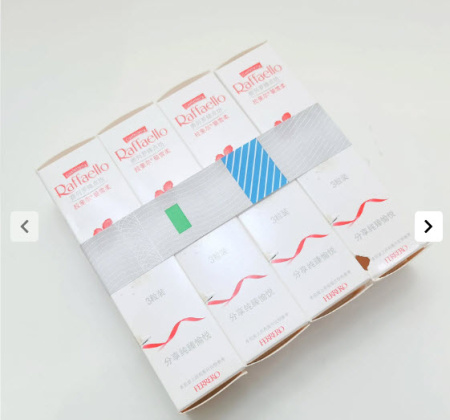

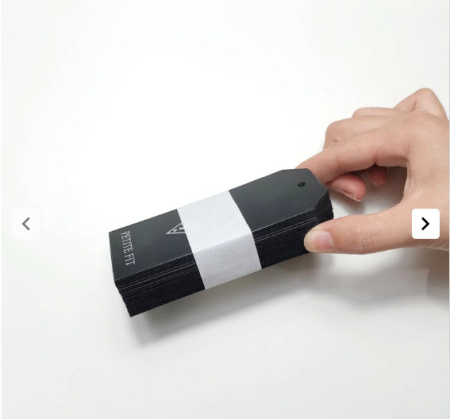

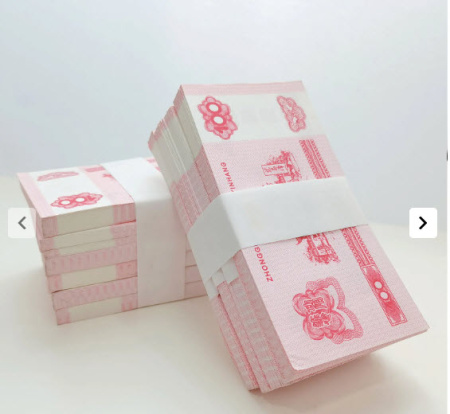

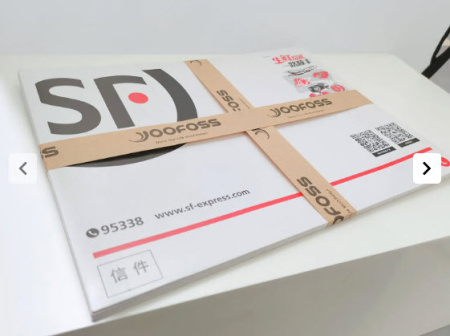

Sunpack WK02-30 Strapping-Banding-Machine Table-Top-Model is the best cost and labor-saving solution for any business. With its small size L 611 x W 364 x H 475mm (L24 x W14.33 x H18.70 In), this strapping banding machine can suit any work environment. Also, the SunPack Automatic Banding Machine uses a heating sealing system to bond material (paper & OPP film) together to form a nice tidy seal around each item. Its high production capacity and low maintenance costs make it an ideal machine for any business.

FEATURES

• Belt table for infeed and outfeed product automatically
• 60 Seconds Pre-Heating time
• Heat Sealing
• Applicable for both paper band and OPP film
• Can connect to a jumbo roller dispenser to load 500-800 meters roll
• AC motor Power

SPECIFICATIONS

• Applicable Material: OPP film or PP band
• Automatic Grade: Automatic
• Driven Type: Electric
• Material Specification: Width: 29.2-29.6mm, Thickness: 120mic, Length: 150meters, Core: 40 mm
• Application: Waste Paper, Steel Pipe, Household Chemicals, Medical, Hair Care Products, Cosmetics, Skin Care Products, Carbonated Drinks, Milk, Yogurt, and Alcoholic Beverages, for The Printing Industry
• Packaging: Cartons
• Strapping Mode: Welding Type

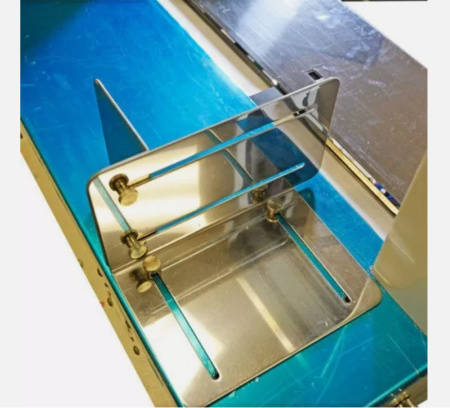

• Structure: Banding Machine with Belt Conveyor
• Roll Size: 40mm Diameter X 150 ml
• Arch Size: 470*200 mm
• Banding Size Min: 30*10mm Max: 460*200 mm
• Power Supply: 220V 50hz 1phase or 110V 60hz 1phase
• Power Rate: 450W
• Control System: PLC+Key board control panel
• Band QTY: 1 or 2 or 3 bands
• Banding Speed: 25 bands/Minute
• Banding Tension: 5-40N
• Welding Method: Heat Sealing
• NW: 45 kg
• Machine Dimension: L 611 x W 464 x H 475mm

Common Replacement Parts for SUNPACK WK02 Banding Machine Models

Replacement Spring Washer (Part# WK01-14-20-02-v1)
Replacement Top Sliding Plate (Part WK01-14-26-01-v3)
Replacement Sliding Wheel (Part# WK01-14-26-03-V1)
Replacement Inner Spring Washer (Part# WK01-14-20-02-V2)
Replacement Heater Unit Assembly (Part # WK01-14-16)
Replacement Cutter (Part # WK01-14-16-01-V2)
Replacement Front Knife Unit (Part # WK01-14-17)
Replacement Top Plate Unit (Part # WK01-14-26)
Replacement Siding Plate Unit (Part # WK02-14-27)
Replacement Approximate Switch (Part # FL7M-3J6HD)
Replacement Micro Switch (Part # E42AL-BA12AG-01 GREY)
Replacement Photocell (Part # PM2-LH10-C1)
Replacement Reel Core (Part # WK01-11-05-V1)
Replacement Big Transformer (Part # 220/1.4V 45VA)
Replacement Heating Cable (Part # 610 280)
Replacement Feeding Wheel (Part # WK02-14-19-01)
Replacement Heater (Part # WK01-14-16-05)
Replacement Insulating Plate (Part # WK01-14-16-06)
Replacement Insulating Plate (Part # WK01-14-16-02)
Replacement Insulating Plate (Part # WK01-14-16-04)
Replacement Driven Wheel (Part # WK01-14-08-08)
Replacement Feeding Guide Unit (Part # WK02-14-18-00)
Replacement Arch Unit 4620 (Part # WK02-30-03U)



If you have any questions or concerns, contact a customer service representative today.
