Rotatrim Technical Series 64 Inch (1625 mm) Rotary Trimmer (60335)
Description

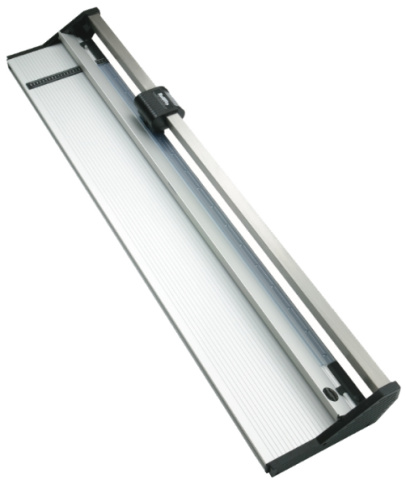

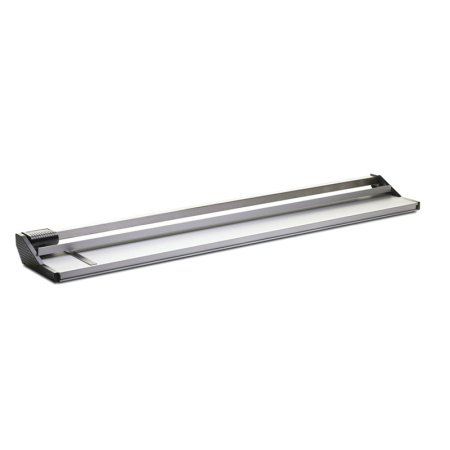

Rotatrim Technical Series 64 Inch (1625 mm) Rotary Trimmer (60335)
An all day, every day-use” trimmer that cuts up to 100 Inch
Description
The Rotatrim Technical is identical in form to the DigiTech+ except that its design adds a triple roller mechanism to provide extreme down force for the cutting of heavy materials. It also features special Sheffield “tool” steel blades designed to offer enhanced durability under extreme operational loads. With high chromium content, these blades are exceptionally slow wearing, even when cutting the most abrasive materials.If you’re looking for an “all day, every day-use” extremely heavy duty rotary trimmer that is capable of cutting the widest array of substrates and materials – from flexible to semi-rigid– this large format trimmer (up to 100?) is the answer. The Technical is perfect for high-volume cutting and trimming of heavy-duty materials:
- A single 1 1/2? stainless steel guide rail completely eliminates head swivel.
- All-metal construction (and extruded aluminum baseboard, end frames and head) ensure robustness.
- An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.

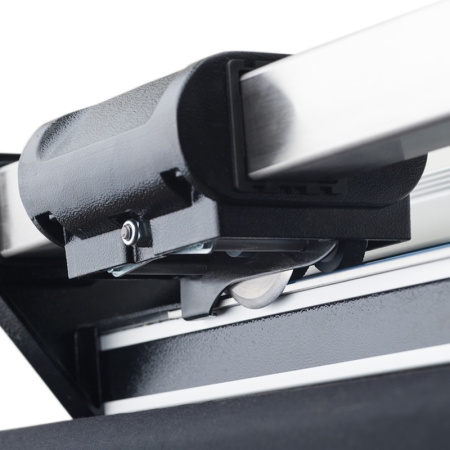

- A triple roller mechanism provides extreme down force for the cutting of heavy materials (maximum cut depth of 4mm).

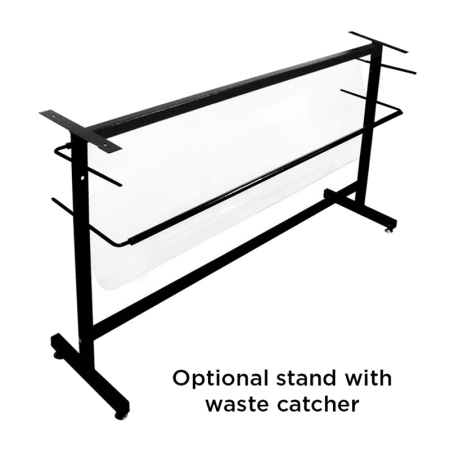

Optional Stand & Waste Catcher Package
This convenient quality steel stand that supports the Rotatrim Technical Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off cuts.
Helpful Hints
Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.

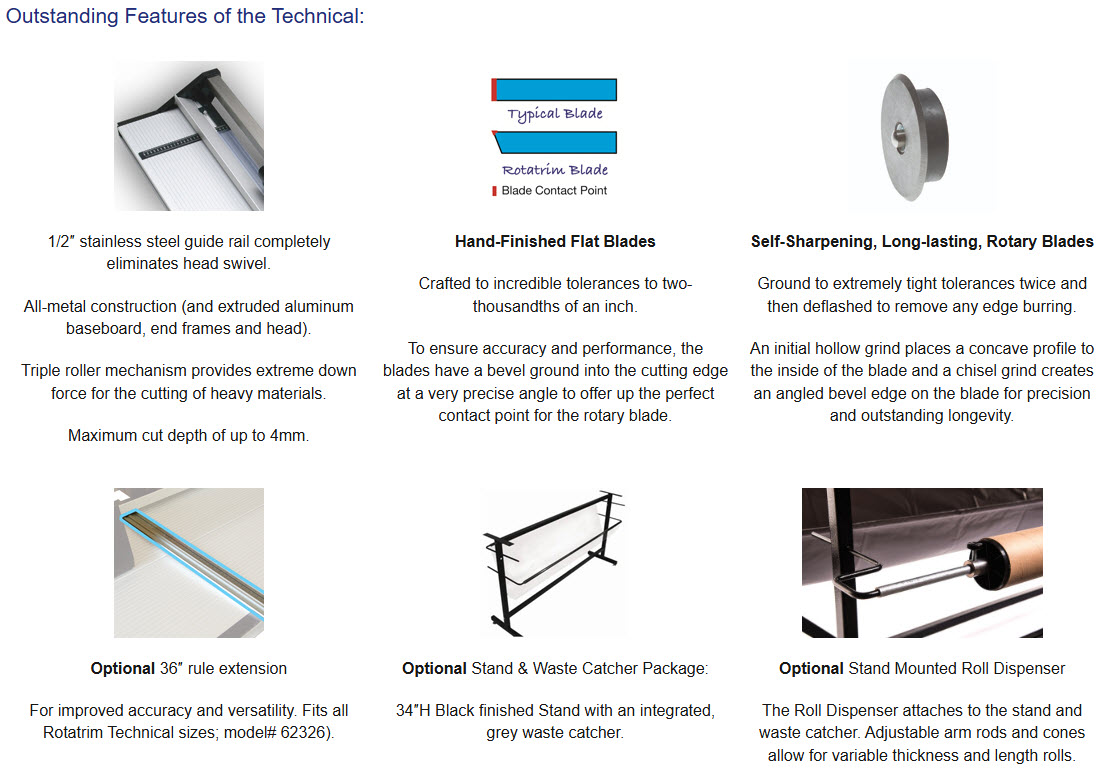

FEATURES
- Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate
- Triple roller mechanism
- ISO9001:2008 quality certified
- 5-year general warranty on all parts
- 100% made in England
Perfect for Cutting Up to 3mm:
- Aluminum (.5mm)
- Banners
- Canvas
- Card
- Cellophane
- Cibachrome
- Cork
- Digital prints
- Encapsulations
- Engraving lam
- Flexographic plates (.067?)
- Floor graphics
- Foamex (1mm)
- Foil
- Inkjet paper
- Laminations
- Leather
- Lithoplate
- Magnetic Vinyl
- Masonite (2mm)
- MDF (2mm) Mount board
- Photo Paper
- Photo Film
- Polyester
- Polystyrene
- Posters
- Self-adhesive film
- Tissue Paper
- Veneers

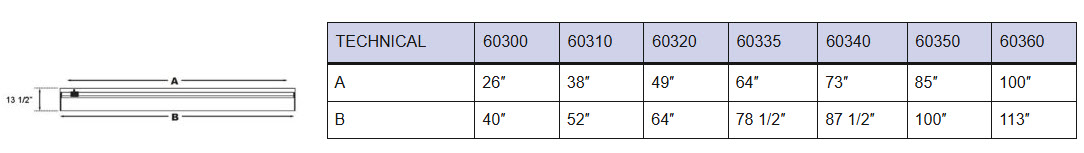

SPECIFICATIONS
- Cutting Length: 64 Inch (1625 mm)
- Suitable For: Most flexible sheet materials up to 4mm thick.
- Part Number: 60335
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | 60335 |
