Description

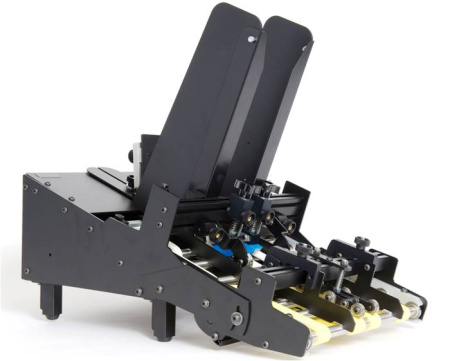

Straight Shooter R-12D High Speed Demand Feeder for Mailing, Printing and Packaging

Straight Shooter introduced this revolutionary method of separation in 2004. Other feeders use a high friction “nip” point to separate documents. Straight Shooter eliminates the “nip” point for smoother feeding without the jams!

If it’s good enough for the feeder.
It’s good enough for the acceleration table!

Just like our feeders, our acceleration table features repositionable belts, complete paper guides, easy belt changes, and total product control. In addition, the angle of the acceleration table is adjustable! This makes it the ideal feeder for a wide variety of applications.

The acceleration table paper guides and hold down rollers keep your documents straight. Our unique design positions the outer two belts automatically with the paper guides! The guides can be slid over the outer belts and toward the center for use on narrow stock!

Straight Shooter’s D-12 demand feeder with our unique adjustable angle acceleration table gives you quality, versatility, and STRAIGHT FEEDING, all at a great price! The D-12 offers all the features Straight Shooter has become known for:

• One-shot or continuous mode
• Adjustable angle delivery on the acceleration table
• Complete paper guides even on the acceleration table
• 10-minute belt changes — ALL BELTS!
• Tool-less setup
• Flexible and easy to use
• Great for ink jet, tabbing, collators, folders, and much more
• Batch counting is also available
• Complete paper guides for the straight delivery of your documents
• Repositionable belts — let you put the friction where YOU want it
• Buckle separation™ for smoother separation without the jams
• Multiple, independently adjustable separators for greater versatility
• Quick, easy belt changes reduce downtime and save you money
• The acceleration table creates gaps between documents for accurate photo eye detection, and delivers documents smoother and faster!

Features:

• Start and stop photo eyes
• Variable speed
• Push button start
• Complete paper guides
• Specifications
• Speeds: Up to 40,000 postcards per hour
• Piece sizes: Width 3.125 Inch mm. up to 11.75 Inch max. Length 2 Inch minimum up to 17 Inch max
• Thickness: Single sheet to 3/8 Inch thick
• Power: 11 5 vac (230 optional)
• 5 amp 50/60 HZ
• Dimensions: 15” wide x 25 Inch long x 19 Inch high
• Weight: 45 lbs.

Technical Specifications

• Media Handling:
• Width: 3 Inch minimum up to 12 Inch maximum (20 Inch on D-20)
• Length: 2 Inch minimum up to 17 Inch maximum
• Thickness: Single sheet up to 3/8” thick
• Speeds: Up to 40,000 postcards per hour
• Power:
• 120 vac, 5 amp standard, (240 optional)
• Available interlocks:
• Dry contact, 12 vdc,
• 24 vdc, 24 vac. Others upon request.
• Dimensions: 17 Inch wide x 26 Inch long Weight: 55 lbs
