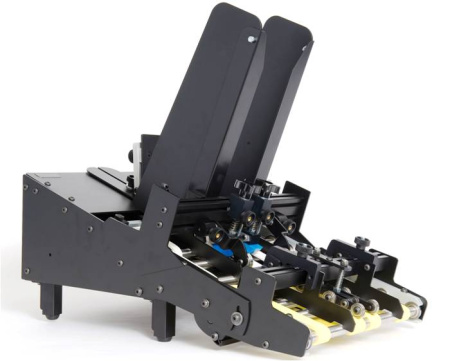

Straight Shooter D9 High Speed Demand Feeder for Mailing, Printing and Packaging

The D9 (demand mode) feeder from Straight Shooter is the latest innovation from the company that brought you buckle separation, straight feeding, and 5-minute belt changes. Responding to requests to put Straight Shooter ideas into a model for swing arm inserting equipment, they developed two all-new 9 Inch (width) capacity models!

The D9 (Demand mode) feeder adds capacity to any inserter. The D9 can be placed on the front table of a swing arm inserter and eject a piece into the insert track when signaled by the included start photo eye. Not only can the D9 easily increase your inserter capacity, it can also handle hard-to-feed items such as Z-folded pieces, booklets, magnets, CD’s and more!
The D9 incorporates our unique acceleration section that creates consistent gaps between pieces and accelerates each piece away from the feeder for excellent delivery to an inserter or collator type machine.

Features:

• Complete paper guides that control the document all the way through the feeder.
• Paper guides that descend below the surface of the belts so pieces cannot slip out underneath
• Exit guides with built-in stop photo for simplicity and precise delivery of documents
• Four repositionable feed belts and acceleration belts – easily adjustable for wider range of pieces!
• Dual, independently adjustable separators for versatility. – Feeds uneven pieces easily!
• Simple, single knob adjustments – No tools necessary
• 5 minute belt changes
• Variable speeds
• Can also be used as continuous feeders for ink jetting or tabbing
• Handles piece sizes from business cards to 9 Inch wide, from 2 Inch to 12 Inch long.
• Thicknesses from single sheet to 3/8 Inch
• Acceleration section creates consistent product gaps and ejects documents positively
• Reversible back wedge with angle, height and position adjustments

Technical Specifications

• Width: 2.5 Inch minimum up to 9 Inch maximum
• Length: 2 Inch minimum up to 11 Inch maximum
• Thickness: Single sheet up to 1/4 Inch thick

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
