Description

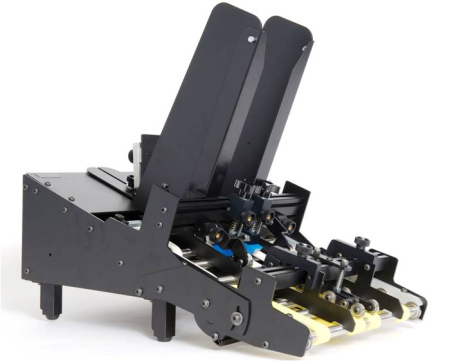

Straight Shooter P9 Presentation Inserter Feeder (incl. stop photo) for Mailing, Printing and Packaging

The new P9 (presentation mode) feeder from Straight Shooter is the latest innovation from the company that brought you buckle separation, straight feeding, and 5-minute belt changes. Responding to requests to put Straight Shooter ideas into a model for swing arm inserting equipment, they developed two all-new 9” (width) capacity models!

The P9 (presentation mode) feeder fits in the feed station of a normal swing arm type inserting machine to replace the standard vacuum feeder. The P9 incorporates unique paper guides that guide the document all the way to the gripper, and its built-in product detection is attached to the guides so that a separate adjustment of this eye is not necessary! Utilizing beam-break technology, the photo eye is not sensitive to dark printing on the document, as is the case with competitive feeders! In addition, its built-in paper hold-down guides present the document at the right height for the gripper.

There is no need to add additional components to the inserter for paper guiding. The P9 can be conveniently set up away from the hopper and then simply slid into position. It can even be moved from one hopper to another with no adjustments.

Features:

• Complete paper guides that control the document all the way through the feeder.
• Paper guides that descend below the surface of the belts so pieces cannot slip out underneath
• Exit guides with built-in stop photo for simplicity and precise delivery of documents
• Four repositionable feed belts and acceleration belts – easily adjustable for wider range of pieces!
• Dual, independently adjustable separators for versatility. – Feeds uneven pieces easily!
• Simple, single knob adjustments – No tools necessary
• 5 minute belt changes
• Variable speeds
• Can also be used as continuous feeders for ink jetting or tabbing
• Handles piece sizes from business cards to 9 Inch wide, from 2 Inch to 12 Inch long.
• Thicknesses from single sheet to 3/8 Inch
• Acceleration section creates consistent product gaps and ejects documents positively
• Reversible back wedge with angle, height and position adjustments

Technical Specifications

• Width: 2.5 Inch minimum up to 9 Inch maximum
• Length: 2 Inch minimum up to 11 Inch maximum
• Thickness: Single sheet up to 1/4 Inch thick
