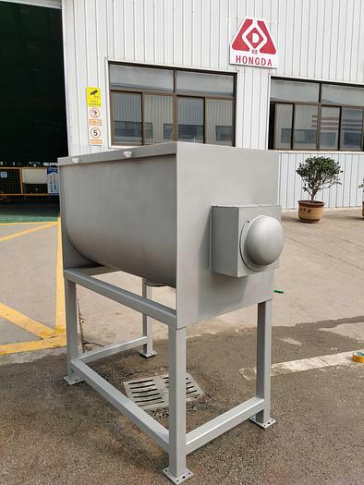

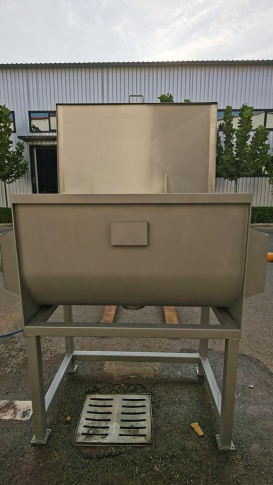

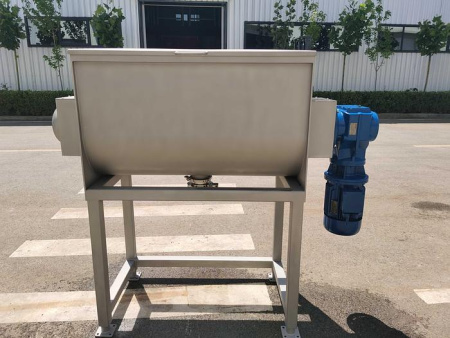

Sanpacsystems Hongda 15 Cubic Feet Ribbon Blender

Hongda 15 Cubic Feet Ribbon blender. Hongda Corp has been manufacturing process equipment, pressure vessels, and tanks for over 38 years in China. Our 300,000 sq. foot facility has over 300 employees and is recognized worldwide for its quality, dependability, and after-market support. Your equipment will be supported by our Ontario, California, warehouse staff, where we maintain spare parts and dispatch our service technicians. Our companys product line includes American Society of Mechanical Engineers (ASME-U and ASME UM) approved pressure vessels ranging in size from 1 to 30000 gallons (for all your registration requirements), Hongda has been authorized by 3A, PED, and ISO9001 and is CE approved.

Key Features

• 304 SS construction
• All contact surfaces and welds are ground and polished to RA 25 grade

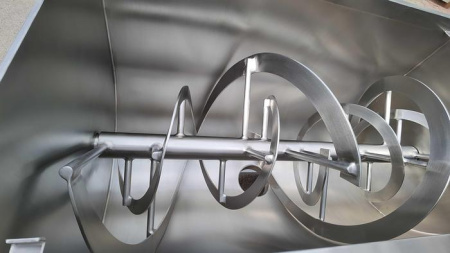

• Solid Stainless Steel main shaft
• Air purge and split ring design seal housing
• 6 Inch centered discharge
• Controller interface

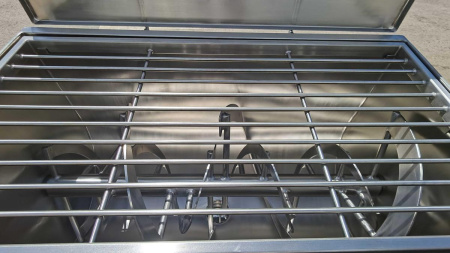

• Safety Grate interlock
• Emergency stop button
• Working capacity 15 cu. Ft.
• Full working capacity 18.5 cu ft.
• Working capacity in kilograms 200
• Working capacity in gallons 112
• Working capacity in liters 425

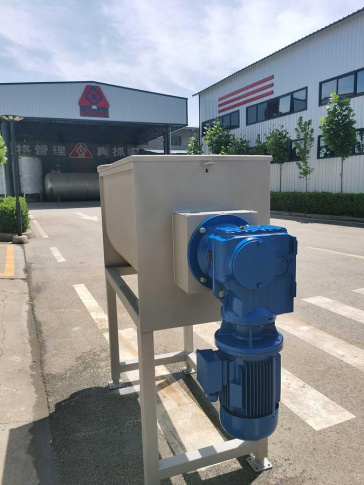

• Motor 10 HP/240 480V/3Pz UL listed drive
• Overall length 76 Inch
• Overall width 32 Inch
• Tub length 48 Inch
• Tub width 25 Inch
• Outlet height 30 Inch
• Shipping weight 1,031 Lbs.
• Warranty: 1 year in spare parts

Technical Specifications

• Material: Stainless steel 304
• Safety: Safety grates, safety limit switches (prevent operation when grates are raised).
• Advantage: Direct drive, Solid shafts, Air Purge, Split ring seal housing.
• WARRANTY: 2 years
• Package size: 83 x34 x67 Inch
• Weight: 1322lbs
• Surface treatment: Sanitary internal polished finish; external sandblasting.

.



If you have any questions or concerns, contact a customer service representative today.
